| Technical Data |
|
| Valve function |
5/2-way, bistable, dominant |
| Type of actuation |
Electric |
| Construction width |
42 |
| Standard nominal flow rate (standardised to DIN 1343) |
1300 |
| pneumatic working port |
Sub-base size 1 to ISO 5599-1G1/4 |
| Operating voltage |
24V DC |
| Operating pressure |
-0.916 |
| Design |
Piston gate valve |
| Approval |
c UL us - Recognized (OL) |
| Degree of protection |
IP65NEMA 4 |
| Nominal size |
11 |
| Grid dimension |
43 |
| Exhaust-air function |
With flow control optionVia throttle plateVia individual sub-base |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
DetentingNon-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
optional |

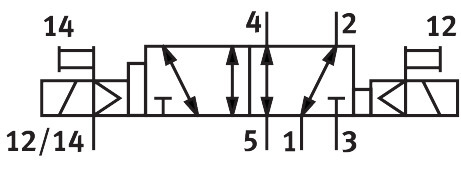

| Symbol |
00991750 |
| lap |
Overlap |
| Signal status display |
LED |
| Pilot pressure |
310 |
| Flow rate of valve |
2000 |
| Flow rate of valve on individual sub-base |
1400 |
| Flow rate of pneumatically interlinked valve |
1300 |
| Switching time reversal |
19 |
| Duty cycle |
100% |
| Max. positive test pulse with 0 signal |
1600 |
| Max. negative test pulse with 1 signal |
1100 |
| Characteristic coil data |
24 V DC: 1.6 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-550 |
| Relative air humidity |
0 - 90% |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-550 |
| Product weight |
439 |
| Electrical connection |
3-pinM12x1Central plugRound design |
| Type of mounting |
On sub-base |
| Pilot air port 12/14 |
Sub-base size 1 to ISO 5599-1 |
| Pilot exhaust port 82/84 |
DuctedNot ducted as per standardEither: |
| Pneumatic connection, port 1 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 1 to ISO 5599-1 |
| Note on materials |
RoHS-compliant |
| Material seals |
FPMHNBRNBR |
| Material housing |
Die-cast aluminiumPA |
| Material screws |
SteelGalvanised |
