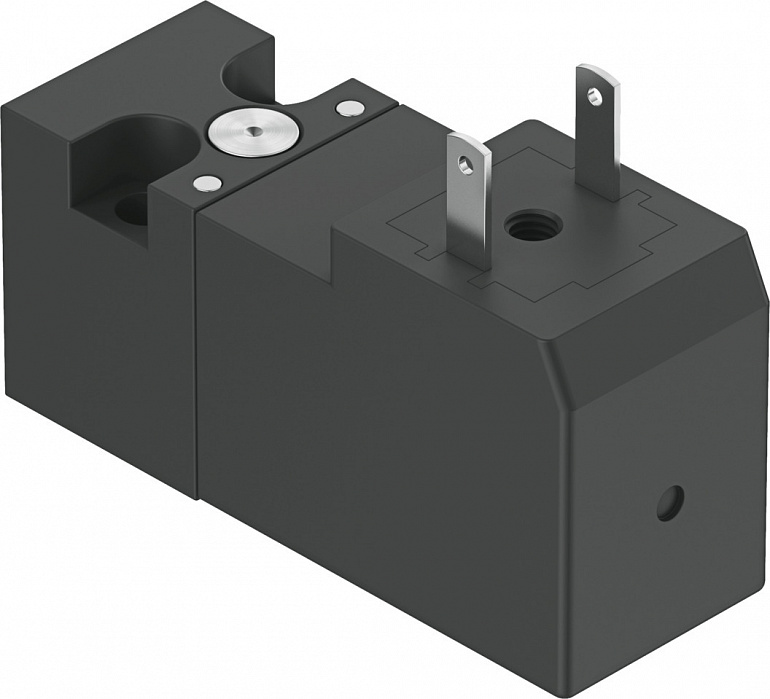

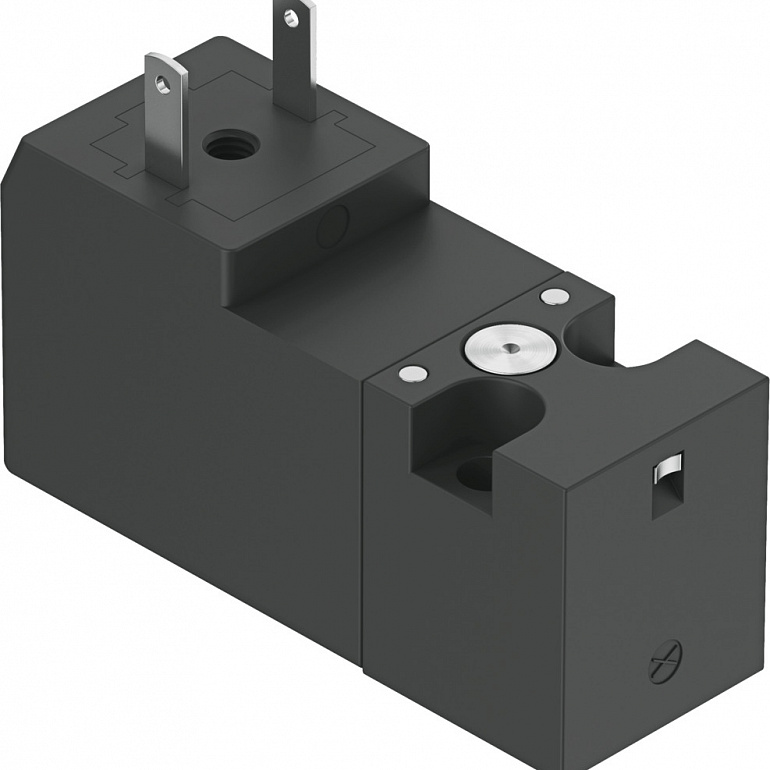

| Technical Data |
|
| Valve function |
3/2-way, closed, monostable |
| Type of actuation |
Electric |
| Construction width |
15 |
| Standard nominal flow rate (standardised to DIN 1343) |
13.5 |
| pneumatic working port |
Sub-base size 15 mm to ISO 15218 |
| Operating voltage |
24V DC |
| Operating pressure |
21.75116 |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP65 |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 15218 |
| Manual override |
DetentingNon-detenting |
| Type of piloting |
Direct |
| Flow direction |
Non-reversible |
| Symbol |
00991308 |
| lap |
Underlap |
| Note on forced dynamization |
Switching frequency min. 1/week |
| Switching time off |
6 |
| Switching time on |
8 |
| Duty cycle |
100% |
| Characteristic coil data |
24 V DC: 1.3 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-C1-L |
| Media temperature |
-550 |
| Ambient temperature |
-550 |
| Electrical connection |
Plug pattern type C to industry standard, 9.4 mm |
| Pneumatic connection, port 1 |
Sub-base |
| Pneumatic connection, port 2 |
Sub-base |
| Pneumatic connection, port 3 |
Sub-base |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
