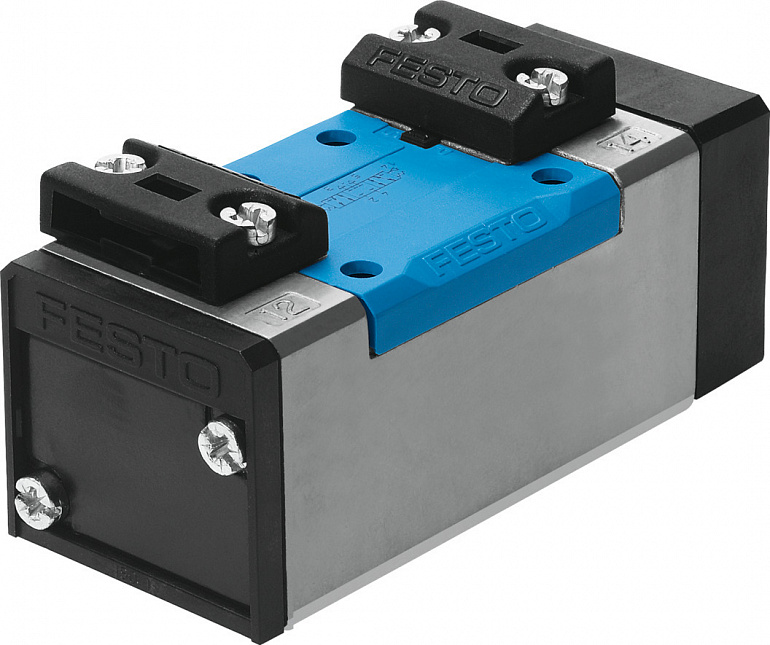

| Technical Data |
|
| Valve function |
5/2-way, monostable |
| Type of actuation |
Pneumatic |
| Construction width |
54 |
| Standard nominal flow rate (standardised to DIN 1343) |
2300 |
| pneumatic working port |
Sub-base size 2 to ISO 5599-1G3/8 |
| Operating pressure |
-0.916 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Approval |
UL - Recognized (OL) |
| Nominal size |
11.5 |
| Grid dimension |
56 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
None |
| ISO code |
204 |
| Type of piloting |
Direct |
| Flow direction |
Reversible |
| Symbol |
00991029 |
| lap |
Overlap |
| Pilot pressure |
316 |
| Switching time off |
39 |
| Switching time on |
11 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Sound pressure level |
85 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-1060 |
| Product weight |
550 |
| Type of mounting |
On sub-baseVia through-hole and screw |
| Pilot air port 14 |
Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 1 |
Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 2 to ISO 5599-1 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Die-cast aluminium |
