| Technical Data |
|
| Valve function |
5/3 closed |
| Type of actuation |
Electric |
| Construction width |
65 |
| Standard nominal flow rate (standardised to DIN 1343) |
4100 |
| pneumatic working port |
Sub-base size 3 to ISO 5599-1G1/2 |
| Operating voltage |
Via solenoid coil, must be ordered separately |
| Operating pressure |
-0.916 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| CE mark (see declaration of conformity) |
To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) |
To UK EX instructions |
| ATEX category gas |
II 2G |
| ATEX category dust |
II 2D |
| Explosion ignition protection type for gas |
Ex h IIC T4 Gb |
| Explosion ignition protection type for dust |
Ex h IIIC T105°C Db |
| Explosion ambient temperature |
-5 °C <= Ta <= +40 °C |
| Explosion protection certification outside the EU |
EPL Db (GB)EPL Gb (GB) |
| Degree of protection |
IP65 |
| Nominal size |
14.5 |
| Grid dimension |
71 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
Detenting via accessoryNon-detenting |
| ISO code |
369 |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
Reversible |

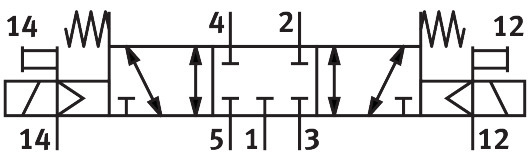

| Symbol |
00991076 |
| lap |
Overlap |
| Pilot pressure |
310 |
| Suitability for vacuum |
yes |
| Switching time off |
77 |
| Switching time on |
36 |
| Max. positive test pulse with 0 signal |
2200 |
| Max. negative test pulse with 1 signal |
3700 |
| Explosion protection |
Zone 1 (ATEX)Zone 1 (UKEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 21 (UKEX)Zone 22 (ATEX) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Sound pressure level |
85 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-540 |
| Product weight |
1040 |
| Electrical connection |
Via F coil, to be ordered separately |
| Type of mounting |
On sub-baseVia through-hole and screw |
| Pilot exhaust port 82 |
M5 |
| Pilot exhaust port 84 |
M5 |
| Pilot air port 12 |
Sub-base size 3 to ISO 5599-1 |
| Pilot air port 14 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 1 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 3 to ISO 5599-1 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Die-cast aluminium |
