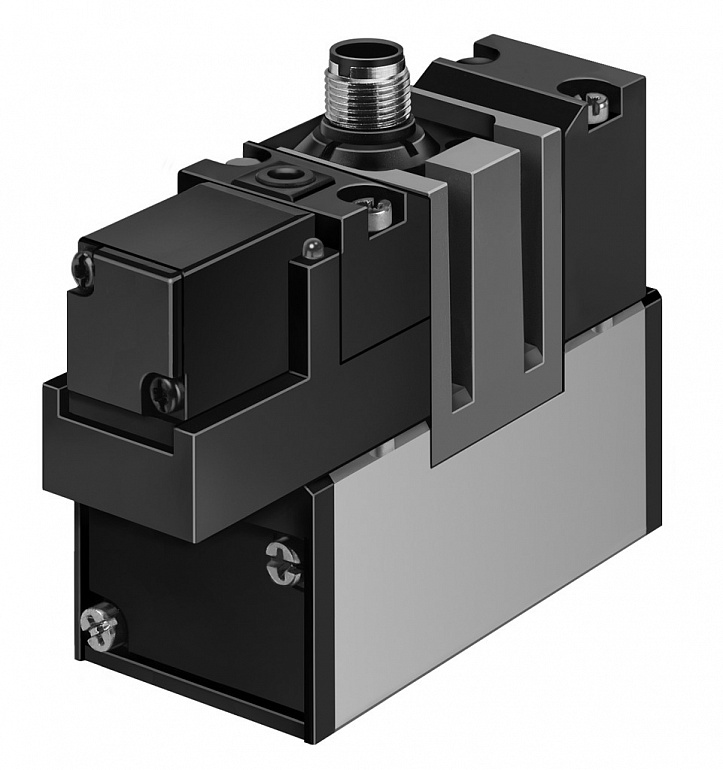

| Technical Data |
|
| Valve function |
5/2-way, monostable |
| Type of actuation |
Electric |
| Construction width |
65 |
| Standard nominal flow rate (standardised to DIN 1343) |
4500 |
| pneumatic working port |
Sub-base size 3 to ISO 5599-1G1/2 |
| Operating voltage |
24V DC |
| Operating pressure |
310 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP65 |
| Nominal size |
14.5 |
| Grid dimension |
71 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
Non-detenting |
| ISO code |
351 |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00991003 |
| Switching time off |
109 |
| Switching time on |
28 |
| Characteristic coil data |
24 V DC: 2.5 W |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1050 |
| Ambient temperature |
-1050 |
| Product weight |
1000 |
| Electrical connection |
M12x1Central plugRound design |
| Type of mounting |
With through-hole |
| Pilot exhaust port 84 |
Not ducted |
| Pneumatic connection, port 1 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 3 to ISO 5599-1 |
| Material seals |
NBR |
| Material housing |
Die-cast aluminium |
