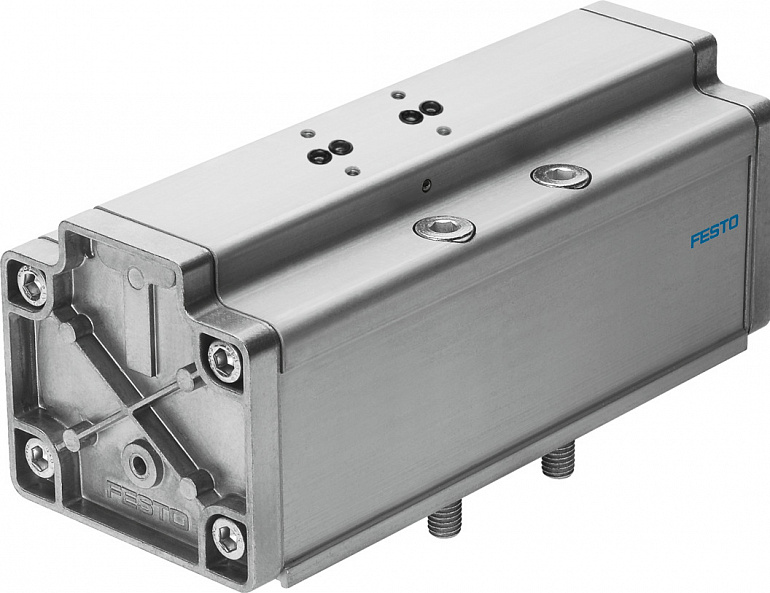

| Technical Data |
|
| Valve function |
5/3 closed |
| Type of actuation |
Electric |
| Construction width |
76 |
| Standard nominal flow rate (standardised to DIN 1343) |
4800 |
| pneumatic working port |
Sub-base size 4 to ISO 5599-1G3/4 |
| Operating voltage |
Via solenoid coil, must be ordered separately |
| Operating pressure |
316 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP65 |
| Nominal size |
18 |
| Grid dimension |
82 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
Non-detenting |
| ISO code |
456 |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00991080 |
| lap |
Overlap |
| Switching time off |
290 |
| Switching time on |
85 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Sound pressure level |
85 |
| Ambient temperature |
-1050 |
| Product weight |
2600 |
| Type of mounting |
On sub-baseVia through-hole and screw |
| Pilot exhaust port 82 |
M5 |
| Pilot exhaust port 84 |
M5 |
| Pneumatic connection, port 1 |
Sub-base size 4 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 4 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 4 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 4 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 4 to ISO 5599-1 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material housing |
Aluminium |
