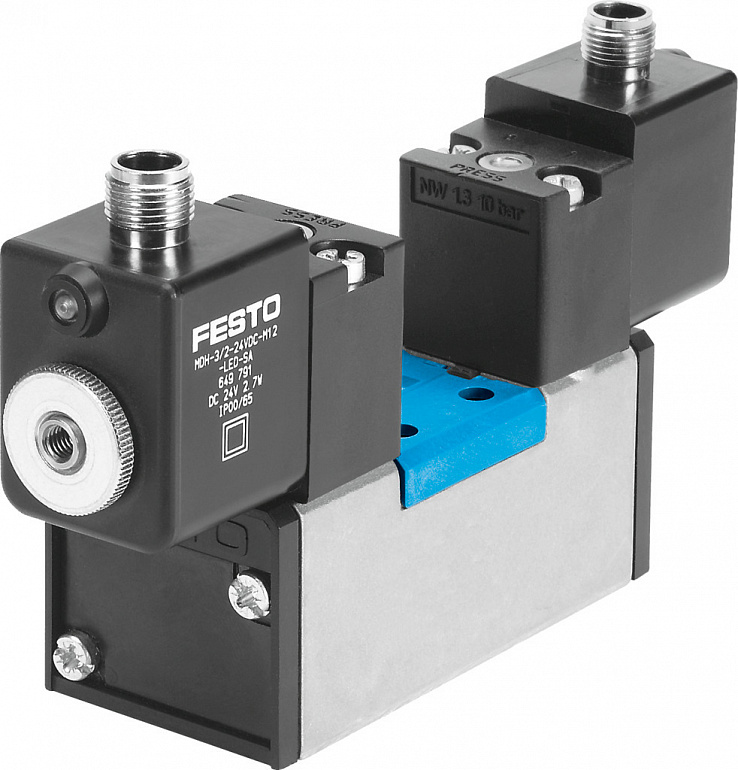

| Technical Data |
|
| Valve function |
5/2 bistable |
| Type of actuation |
Electric |
| Construction width |
65 |
| Standard nominal flow rate (standardised to DIN 1343) |
4500 |
| pneumatic working port |
Sub-base size 3 to ISO 5599-1G1/2 |
| Operating voltage |
24V DC |
| Operating pressure |
210 |
| Design |
Piston gate valve |
| Degree of protection |
IP65 |
| Nominal size |
14.5 |
| Grid dimension |
71 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
Non-detenting |
| ISO code |
355 |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00991005 |
| lap |
Overlap |
| Switching time reversal |
21 |
| Duty cycle |
100% |
| Max. positive test pulse with 0 signal |
3800 |
| Max. negative test pulse with 1 signal |
4900 |
| Characteristic coil data |
24 V DC: 2.7 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1050 |
| Sound pressure level |
85 |
| Ambient temperature |
-1050 |
| Product weight |
1100 |
| Electrical connection |
M12x1 |
| Type of mounting |
On sub-baseVia through-hole and screw |
| Pilot exhaust port 82 |
M5 |
| Pilot exhaust port 84 |
M5 |
| Pneumatic connection, port 1 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 3 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 3 to ISO 5599-1 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Die-cast aluminium |
