| Technical Data |
|
| Valve function |
2x2/2-way, monostable, closed |
| Type of actuation |
Electric |
| Construction width |
52 |
| Standard nominal flow rate (standardised to DIN 1343) |
2800 |
| pneumatic working port |
Sub-base size 2 to ISO 5599-2G1/2 |
| Operating voltage |
24V DC |
| Operating pressure |
310 |
| Design |
Piston gate valve |
| Approval |
c UL us - Recognized (OL) |
| KC mark |
KC-EMV |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| Degree of protection |
IP65NEMA 4 |
| Grid dimension |
59 |
| Exhaust-air function |
With flow control optionVia individual sub-base |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-2 |
| Manual override |
Covered |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
Non-reversible |

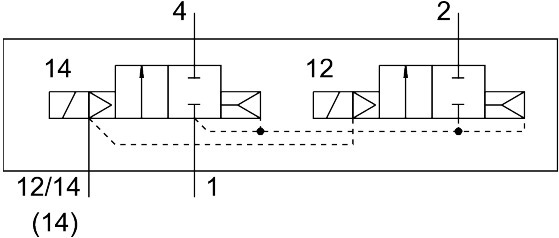

| Symbol |
00995431 |
| Signal status display |
LED |
| Pilot pressure |
310 |
| Flow rate of valve |
4000 |
| Flow rate of valve on individual sub-base |
3400 |
| Flow rate of pneumatically interlinked valve |
2800 |
| Switching time off |
35 |
| Switching time on |
14 |
| Duty cycle |
100% |
| Max. positive test pulse with 0 signal |
1000 |
| Max. negative test pulse with 1 signal |
3500 |
| Nominal pick-up current per solenoid coil |
165 mA up to 30 ms |
| Nominal current with current reduction |
35 mA after 30 ms |
| Characteristic coil data |
24 V DC: 4.6 W |
| Immunity to surge |
2.5 |
| Pollution degree |
3 |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-550 |
| Relative air humidity |
0 - 90% |
| Ambient temperature |
-550 |
| Product weight |
740 |
| Electrical connection |
Plug-inTo ISO 5599-2 |
| Type of mounting |
On sub-base |
| Pilot air port 12/14 |
Sub-base size 2 to ISO 5599-2 |
| Pilot exhaust port 82/84 |
DuctedNot ducted as per standardEither: |
| Pneumatic connection, port 1 |
Sub-base size 2 to ISO 5599-2 |
| Pneumatic connection, port 2 |
Sub-base size 2 to ISO 5599-2 |
| Pneumatic connection, port 3 |
Sub-base size 2 to ISO 5599-2 |
| Pneumatic connection, port 4 |
Sub-base size 2 to ISO 5599-2 |
| Pneumatic connection, port 5 |
Sub-base size 2 to ISO 5599-2 |
| Note on materials |
RoHS-compliant |
| Material seals |
FPMHNBRNBR |
| Material housing |
Die-cast aluminiumPA |
| Material screws |
Galvanised steel |
