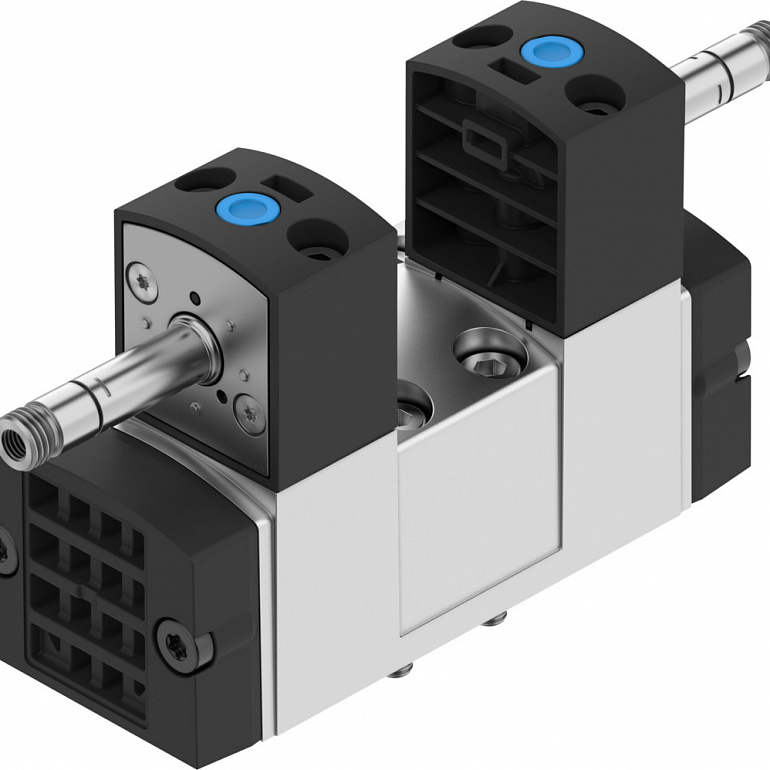

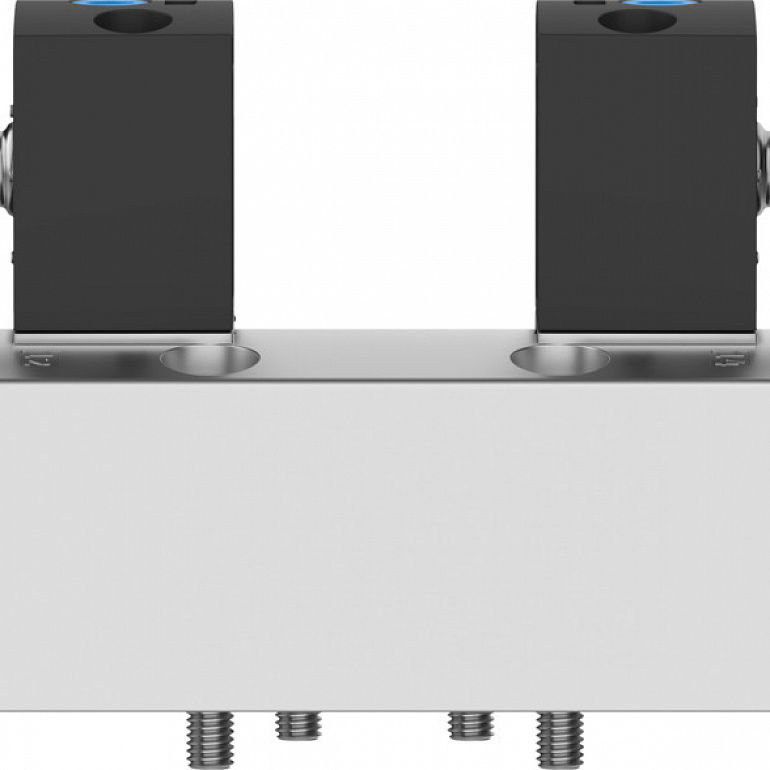

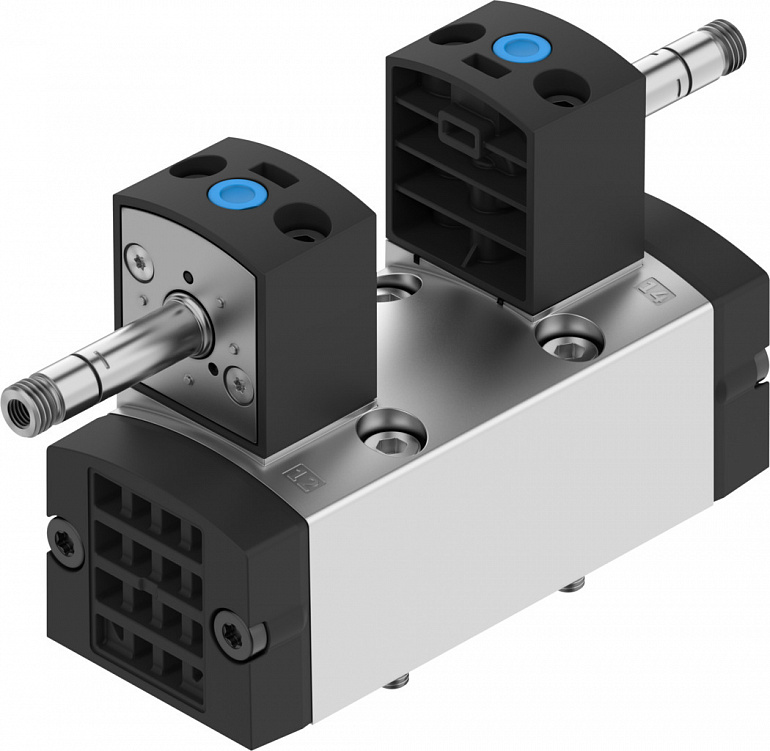

| Technical Data |
|
| Valve function |
2x2/2-way, monostable, closed |
| Type of actuation |
Electric |
| Construction width |
42 |
| Nominal flow rate standardised according to ISO 8778 |
1700 |
| pneumatic working port |
Sub-base size 1 to ISO 5599-1 |
| Operating pressure |
310 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP65NEMA 4 |
| Nominal size |
8 |
| Grid dimension |
43 |
| Exhaust-air function |
Via individual sub-base |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
Non-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00995472 |
| lap |
Overlap |
| Pilot pressure |
310 |
| Suitability for vacuum |
no |
| b value |
0.18 |
| C value |
6.503 |
| Flow rate of valve |
1500 |
| Flow rate of valve on individual sub-base |
1300 |
| Valve flow rate, pneumatically linked, flow optimized |
1500 |
| Flow rate of pneumatically interlinked valve |
1300 |
| Max. switching frequency |
5 |
| Switching time off |
28 |
| Switching time on |
18 |
| Duty cycle |
100% |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1050 |
| Relative air humidity |
0 - 90% |
| Sound pressure level |
85 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-1050 |
| Max. tightening torque for valve mounting |
1 |
| Product weight |
400 |
| Type of mounting |
On sub-base |
| Pilot air port 12 |
Sub-base size 1 to ISO 5599-1 |
| Pilot air port 14 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 1 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 2 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 3 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 4 |
Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 5 |
Sub-base size 1 to ISO 5599-1 |
| Pilot control interface |
To ISO 15218 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material housing |
Die-cast aluminium |
| Material screws |
Steel |
