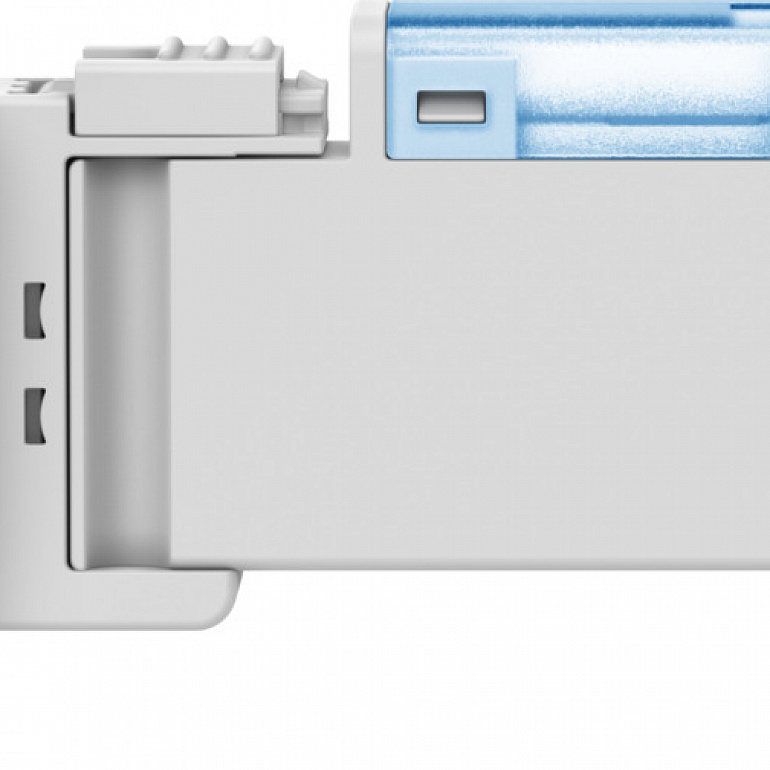

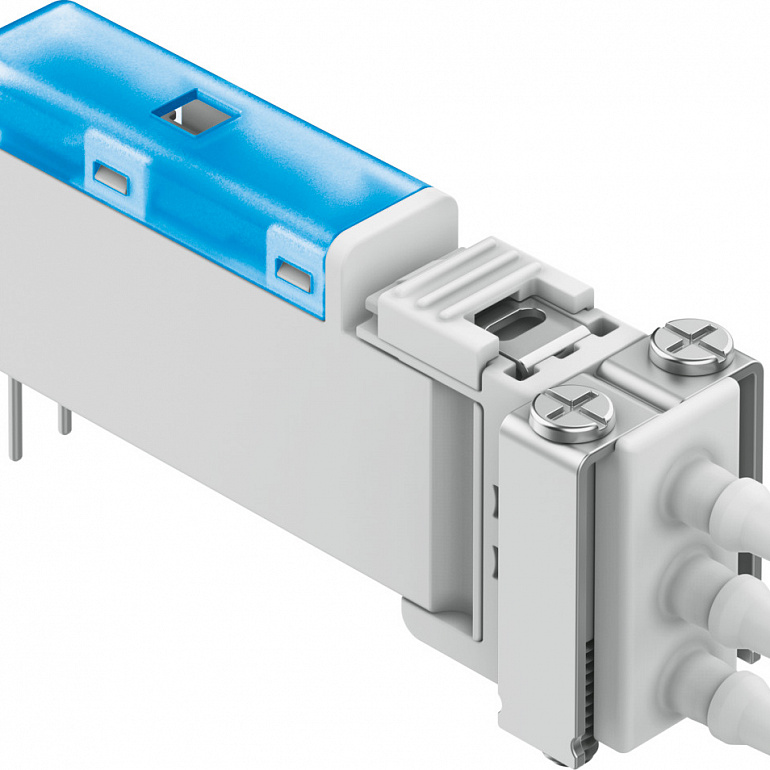

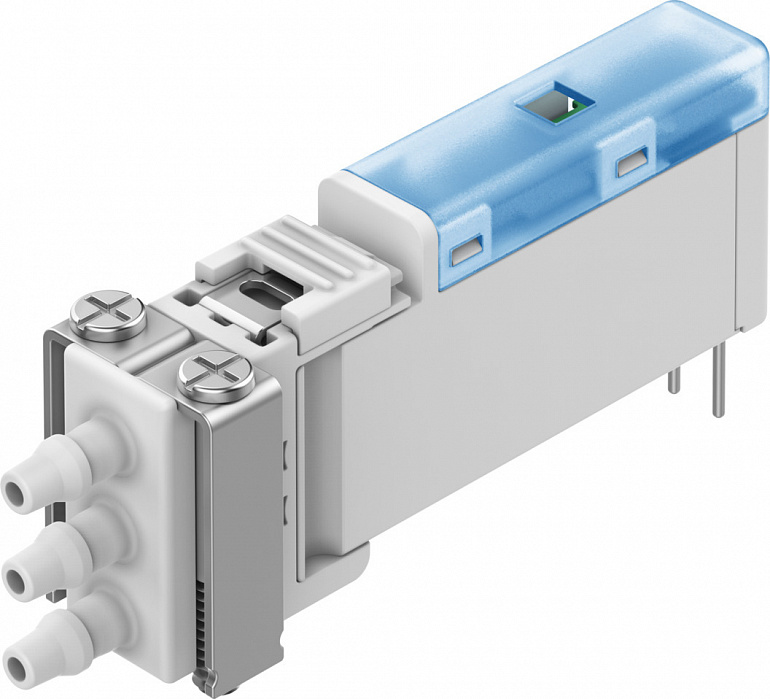

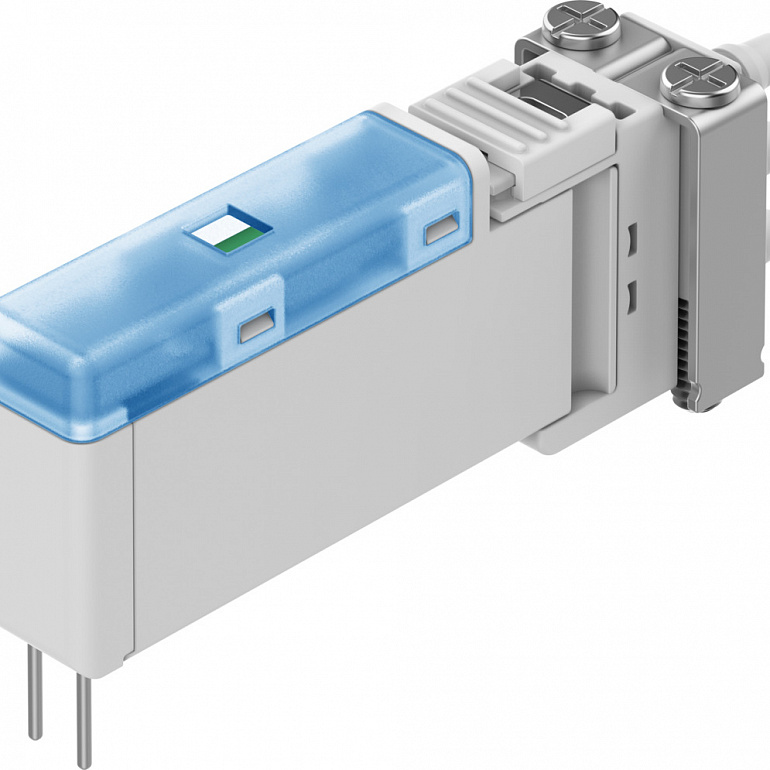

| Technical Data |
|
| Valve function |
3/2-way, closed, monostable |
| Type of actuation |
Electric |
| Construction width |
5.9 |
| Standard nominal flow rate (standardised to DIN 1343) |
5.5 |
| pneumatic working port |
For tubing I.D. 2 mm |
| Operating pressure |
-14.5100 |
| Note on operating pressure |
Operating pressure at port 3: -1 to 0 bar only |
| Design |
Connection orientation forwardsPoppet valve with spring return |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP40 |
| Nominal size |
0.36 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
None |
| Type of piloting |
Electric |
| Flow direction |
Reversible |
| Symbol |
00992967 |
| Cv value |
0.006 |
| Max. switching frequency |
10 |
| Switching time off |
6 |
| Note on switching time off |
At –1 < p < 6 bar |
| Switching time on |
13 |
| Note on switching time on |
<= 6 ms at 0 < p < 6 bar, <= 13 ms at -1 < p < 0 bar |
| Duty cycle |
100% within 500 h |
| Electrical power consumption |
0.5 |
| Nominal operating voltage DC |
12 |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [6:4:1] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Media temperature |
550 |
| Relative air humidity |
70% |
| Note on relative air humidity |
At ambient temperature |
| Ambient temperature |
550 |
| Product weight |
4.5 |
| Electrical connection |
2-pin |
| Type of mounting |
With through-hole |
| Pneumatic connection, port 1 |
For tubing I.D. 2 mm |
| Pneumatic connection, port 3 |
For tubing I.D. 2 mm |
| Note on materials |
RoHS-compliant |
| Material housing |
PBT |
| Material spring |
High-alloy stainless steel |
