| Technical Data |
|
| Valve function |
3/2-way, closed, monostable |
| Type of actuation |
Electric |
| Construction width |
12 |
| Standard nominal flow rate (standardised to DIN 1343) |
180 |
| pneumatic working port |
Sub-base |
| Operating voltage |
24V DC |
| Operating pressure |
29116 |
| Design |
Piston gate valve |
| Type of reset |
Pneumatic spring |
| Degree of protection |
IP40 |
| Nominal size |
2.1 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
Non-detenting |
| Type of piloting |
Pilot actuated |
| Flow direction |
Non-reversible |

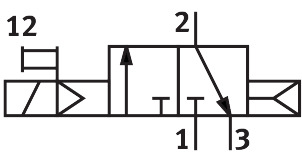

| Symbol |
00991183 |
| lap |
Overlap |
| Switching time off |
10 |
| Switching time on |
12 |
| Characteristic coil data |
24 V DC: 1.0 W |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media temperature |
-550 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-550 |
| Electrical connection |
2-pinPlugs |
| Pneumatic connection, port 1 |
Sub-base |
| Pneumatic connection, port 2 |
Sub-base |
| Pneumatic connection, port 3 |
Sub-base |
| Note on materials |
RoHS-compliant |
| Material seals |
FPMHNBRNBR |
| Material housing |
Wrought aluminium alloy |
