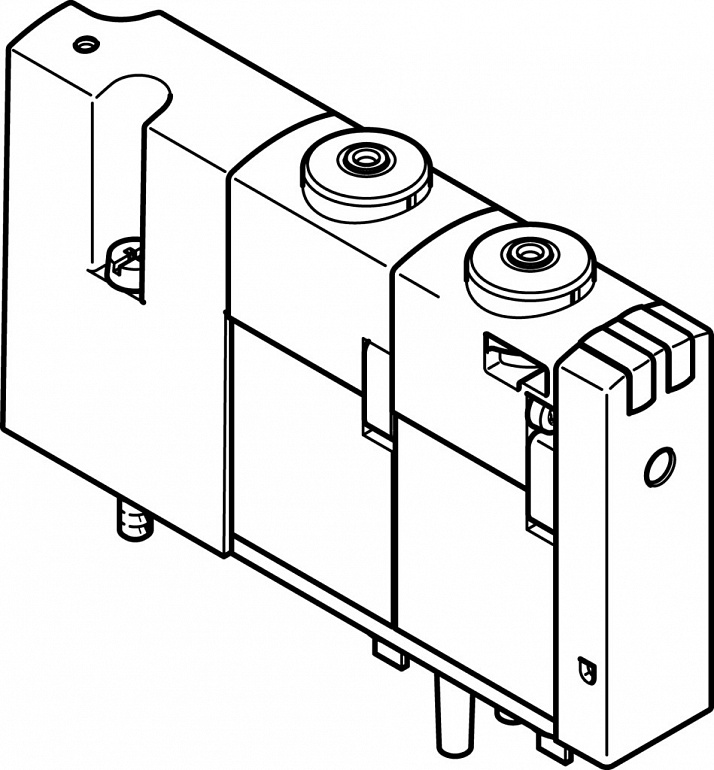

| Technical Data |
|
| Valve function |
2x3/2-way, monostable, closed |
| Type of actuation |
Electric |
| Valve size |
10 |
| pneumatic working port |
Sub-base |
| Operating voltage |
24V DC |
| Operating pressure |
0116 |
| Design |
Poppet valve with spring return |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP40 |
| Approval |
c UL us - Recognized (OL) |
| Nominal size |
0.65 |
| Exhaust-air function |
Without flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
Non-detenting |
| Type of piloting |
Direct |
| Flow direction |
Non-reversible |

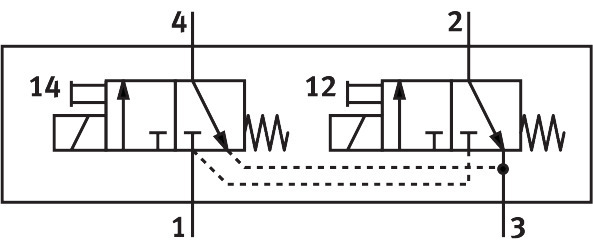

| Symbol |
00992266 |
| lap |
Underlap |
| Signal status display |
LED |
| b value |
0.24 |
| C value |
0.048 |
| Flow rate of valve |
10 |
| Flow rate of pneumatically interlinked valve |
10 |
| Switching time off |
4.7 |
| Switching time on |
5.2 |
| Max. positive test pulse with 0 signal |
600 |
| Max. negative test pulse with 1 signal |
800 |
| Characteristic coil data |
24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media temperature |
-550 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-550 |
| Product weight |
30 |
| Electrical connection |
Via sub-base |
| Pneumatic connection, port 1 |
Sub-base |
| Pneumatic connection, port 2 |
Sub-base |
| Pneumatic connection, port 3 |
Sub-base |
| Pneumatic connection, port 4 |
Sub-base |
| Note on materials |
RoHS-compliant |
| Material seals |
NBRPU |
| Material housing |
PA-reinforced |
