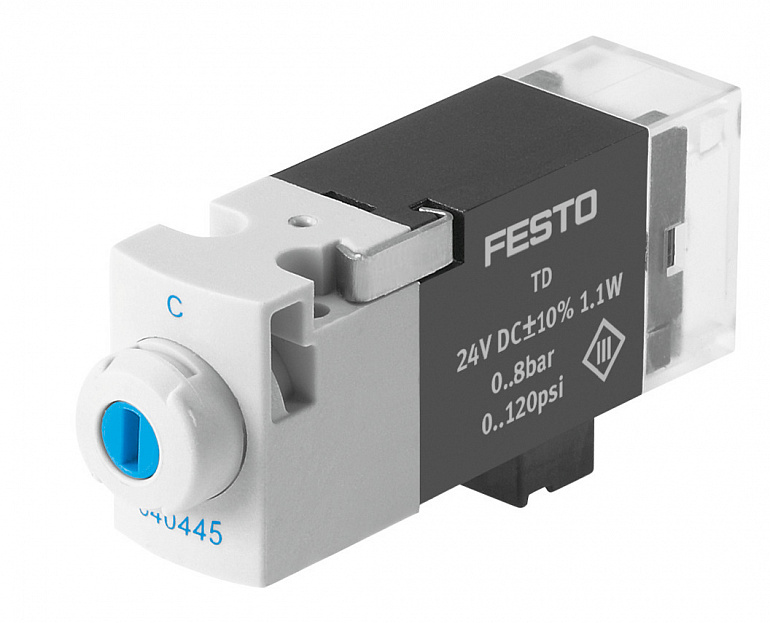

| Technical Data |
|
| Valve function |
3/2 open, monostable |
| Type of actuation |
Electric |
| Construction width |
10 |
| Standard nominal flow rate (standardised to DIN 1343) |
10 |
| pneumatic working port |
Sub-base |
| Operating voltage |
24V DC |
| Operating pressure |
087 |
| Design |
Poppet valve with spring return |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP40 |
| Approval |
c UL us - Recognized (OL) |
| Certificate issuing authority |
UL MH19482 |
| Nominal size |
0.7 |
| Grid dimension |
10 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
DetentingNon-detenting |
| Type of piloting |
Direct |
| Flow direction |
Non-reversible |
| Symbol |
00991322 |
| Valve position code |
Label |
| lap |
Underlap |
| Note on forced dynamization |
Switching frequency min. 1/week |
| Signal status display |
LED |
| Max. switching frequency |
20 |
| Switching time off |
4 |
| Switching time on |
4 |
| Duty cycle |
100% |
| Electrical power consumption |
1.1 |
| Characteristic coil data |
24 V DC: 1.1 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Storage temperature |
-2060 |
| Media temperature |
-540 |
| Ambient temperature |
-540 |
| Product weight |
11 |
| Electrical connection |
Plugs |
| Type of mounting |
On sub-baseWith through-hole |
| Pneumatic connection, port 11 |
Sub-base |
| Pneumatic connection, port 2 |
Sub-base |
| Pneumatic port 33 |
Sub-base |
| Note on materials |
RoHS-compliant |
| Material seals |
FPMHNBRNBR |
| Material housing |
PA-reinforcedPPS reinforced |
