| Technical Data |
|
| Valve function |
3/2-way, closed, monostable3/2 open, monostable |
| Type of actuation |
Electric |
| Standard nominal flow rate (standardised to DIN 1343) |
300 |
| pneumatic working port |
Sub-base |
| Operating voltage |
24V DC |
| Operating pressure |
310 |
| Design |
Piston gate valve |
| Type of reset |
Pneumatic spring |
| Nominal size |
5 |
| Sealing principle |
Soft |
| Manual override |
Non-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
Non-reversible |

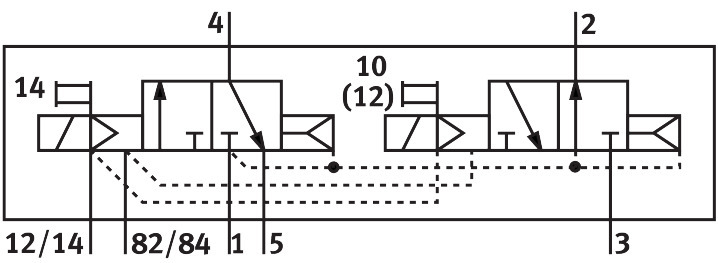

| Symbol |
00991813 |
| Note on forced dynamization |
Switching frequency min. 1/month |
| Pilot pressure |
38 |
| b value |
0.14 |
| C value |
1.4 |
| Switching time off |
22 |
| Switching time on |
10 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
3 - high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media temperature |
-550 |
| Ambient temperature |
-550 |
| Product weight |
210 |
| Type of mounting |
Screw-in |
| Pilot exhaust port 82/84 |
Sub-base |
| Pneumatic connection, port 1 |
Sub-base |
| Pneumatic connection, port 2 |
Sub-base |
| Pneumatic connection, port 3 |
Sub-base |
| Pneumatic connection, port 4 |
Sub-base |
| Pneumatic connection, port 5 |
Sub-base |
| Note on materials |
RoHS-compliant |
| Material seals |
NBRTPE-O |
| Material housing |
Die-cast aluminium |
