| Technical Data |
|
| Standard nominal flow rate (standardised to DIN 1343) |
100 |
| pneumatic working port |
PK-3 |
| Operating pressure |
1.88 |
| Nominal size |
2.5 |

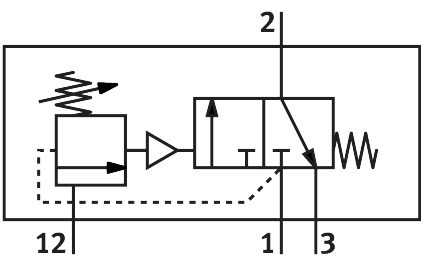

| Symbol |
00991739 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Product weight |
220 |
| Type of mounting |
With through-hole |
| Pneumatic connection, port 1 |
PK-3 |
| Pneumatic connection, port 2 |
PK-3 |
| Pneumatic connection, port 3 |
PK-3 |
| Note on materials |
RoHS-compliant |
