| Technical Data |
|
| Valve function |
5/2 bistable |
| Standard nominal flow rate (standardised to DIN 1343) |
105 |
| pneumatic working port |
PK-3 |
| Operating pressure |
18 |
| Design |
Poppet seat |
| Nominal size |
2.5 |

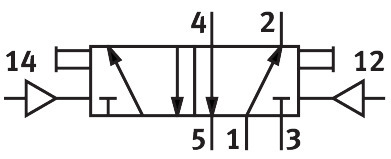

| Symbol |
00991004 |
| Switching time reversal |
9 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
060 |
| Product weight |
130 |
| Type of mounting |
Either:On sub-baseOn mounting frameWith through-hole |
| Pneumatic connection, port 1 |
PK-3 |
| Pneumatic connection, port 2 |
PK-3 |
| Pneumatic connection, port 3 |
PK-3 |
| Pneumatic connection, port 4 |
PK-3 |
| Pneumatic connection, port 5 |
PK-3 |
| Note on materials |
RoHS-compliant |
| Material sub-base |
BrassPPS reinforced |
| Material seals |
NBR |
| Material housing |
PolymerDie-cast zinc |
