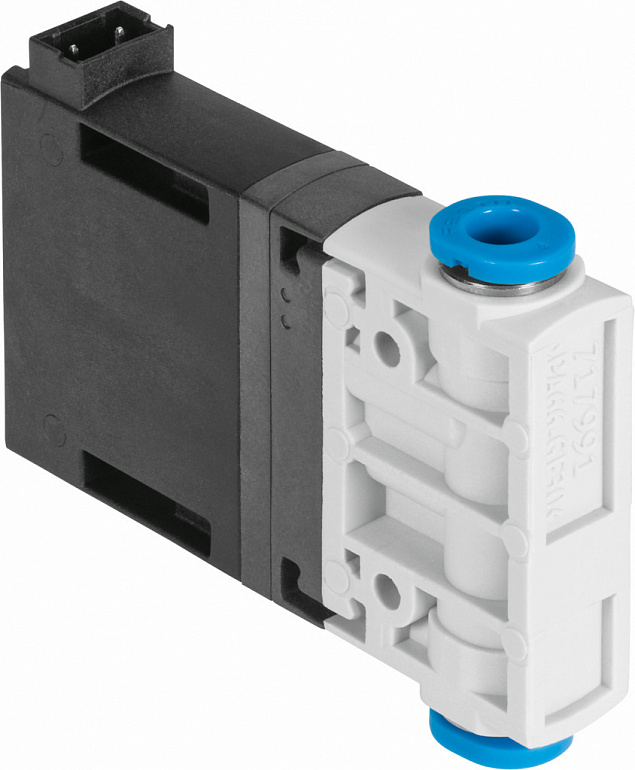

| Technical Data |
|
| Valve function |
2/2-way, closed, monostable |
| Type of actuation |
Electric |
| Construction width |
9 |
| Standard nominal flow rate (standardised to DIN 1343) |
50 |
| pneumatic working port |
QS-4 |
| Operating voltage |
24V DC |
| Operating pressure |
7.25116 |
| Design |
Poppet valve without spring return |
| Type of reset |
Pneumatic spring |
| Degree of protection |
IP40 |
| Grid dimension |
9.5 |
| Note on operation |
Do not operate without flow.For block mounting with flow, max. ambient temperature 45°C. |
| Sealing principle |
Hard |
| Mounting position |
optional |
| Manual override |
None |
| Type of piloting |
Direct |
| Flow direction |
Non-reversible |
| Symbol |
00992259 |
| b value |
0.5 |
| C value |
0.2 |
| Max. switching frequency |
500 |
| Switching time on 0.4 MPa (4 bar, 58 psi) and 24 V in new condition |
0.7 |
| Switching time off 0.4 MPa (4 bar, 58 psi) and 24 V in new condition |
0.9 |
| Switching time on 0.4 MPa (4 bar, 58 psi) and 48 V in new condition |
0.6 |
| Switching time off 0.4 MPa (4 bar, 58 psi) and 48 V in new condition |
0.8 |
| Switching time on 0.4 MPa (4 bar, 58 psi) and 12 V in new condition |
1 |
| Switching time off 0.4 MPa (4 bar, 58 psi)and 12 V in new condition |
0.9 |
| Switching time on 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition |
0.7 |
| Switching time off 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition |
0.9 |
| Switching time on 0.6 MPa (6 bar, 87 psi) and 24 V in new condition |
0.75 |
| Switching time off 0.6 MPa (6 bar, 87 psi) and 24 V in new condition |
0.9 |
| Switching time on 0.8 MPa (8 bar, 116 psi) and 24 V in new condition |
0.8 |
| Switching time off 0.8 MPa (8 bar, 116 psi) and 24 V in new condition |
0.9 |
| Tolerance switching time off |
+15%/-25% |
| Tolerance switching time on |
+/-15% |
| Operational voltage range DC |
1253 |
| Duty cycle |
100% |
| Note regarding operating voltage |
Operation only with connecting cable MHJ9-KMH-... |
| Coil resistance R20 |
2.5 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Restrictions for environmental and media temperature |
As a function of switching frequency (see graph) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Storage temperature |
-2050 |
| Permissible solenoid surface temperature |
120 |
| Media temperature |
-560 |
| Ambient temperature |
-560 |
| Product weight |
30 |
| Electrical connection |
2-pinPlug KMH |
| Type of mounting |
Either:In-line installationWith through-hole |
| Pneumatic connection, port 1 |
QS-4 |
| Pneumatic connection, port 2 |
QS-4 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBR |
| Material housing |
PA-reinforced |
| Material screws |
Steel |
