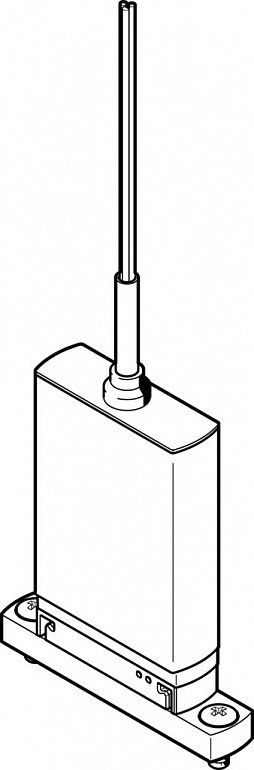

| Technical Data |
|
| Valve function |
2/2-way, closed, monostable |
| Type of actuation |
Electric |
| Construction width |
10 |
| Standard nominal flow rate (standardised to DIN 1343) |
100 |
| pneumatic working port |
Sub-base |
| Operating voltage |
24V DC |
| Operating pressure |
7.2587 |
| Design |
Poppet valve without spring return |
| Type of reset |
Pneumatic spring |
| Degree of protection |
IP55 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Grid dimension |
10.5 |
| Note on operation |
Fixed power supply must be able to supply at least 1.7 A without voltage dropDo not operate without flow.For block mounting with flow, max. ambient temperature 45°C. |
| Sealing principle |
Hard |
| Mounting position |
optional |
| Manual override |
None |
| Type of piloting |
Direct |
| Flow direction |
Non-reversible |
| Symbol |
00992259 |
| Reverse polarity protection |
For operating voltage |
| Additional functions |
Spark arrestingHolding current reduction with energy recoverySafety shut-off |
| b value |
0.38 |
| C value |
0.4 |
| Max. switching frequency |
1000 |
| Switching time on 0.4 MPa (4 bar, 58 psi) and 24 V in new condition |
0.8 |
| Switching time off 0.4 MPa (4 bar, 58 psi) and 24 V in new condition |
0.4 |
| Switching time on 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition |
0.8 |
| Switching time off 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition |
0.5 |
| Switching time on 0.6 MPa (6 bar, 87 psi) and 24 V in new condition |
0.9 |
| Switching time off 0.6 MPa (6 bar, 87 psi) and 24 V in new condition |
0.4 |
| Tolerance switching time off |
+15%/-25% |
| Tolerance switching time on |
+/-15% |
| Operational voltage range DC |
21.626.4 |
| Input resistance |
34 |
| Duty cycle |
100% |
| Characteristic coil data |
24 V DC: low-current phase 2.0 W, high-current phase 7.0 W |
| Trigger signal voltage range DC |
330 |
| Note on input current |
Linear rise0.09-0.44 mA with a trigger signal of 3-15 V0.44-15.44 mA with a trigger signal of 15-30 V |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Restrictions for environmental and media temperature |
As a function of switching frequency (see graph) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Storage temperature |
-2050 |
| Permissible solenoid surface temperature |
120 |
| Media temperature |
-560 |
| Ambient temperature |
-560 |
| Max. tightening torque for valve mounting |
0.7 |
| Product weight |
40 |
| Electrical connection |
3-wireCable |
| Cable length |
0.35 |
| Type of mounting |
On sub-base |
| Pneumatic connection, port 1 |
Sub-base |
| Pneumatic connection, port 2 |
Sub-base |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBR |
| Material housing |
PA-reinforcedPPS reinforced |
| Material cable sheath |
PUR |
| Material screws |
Steel |
