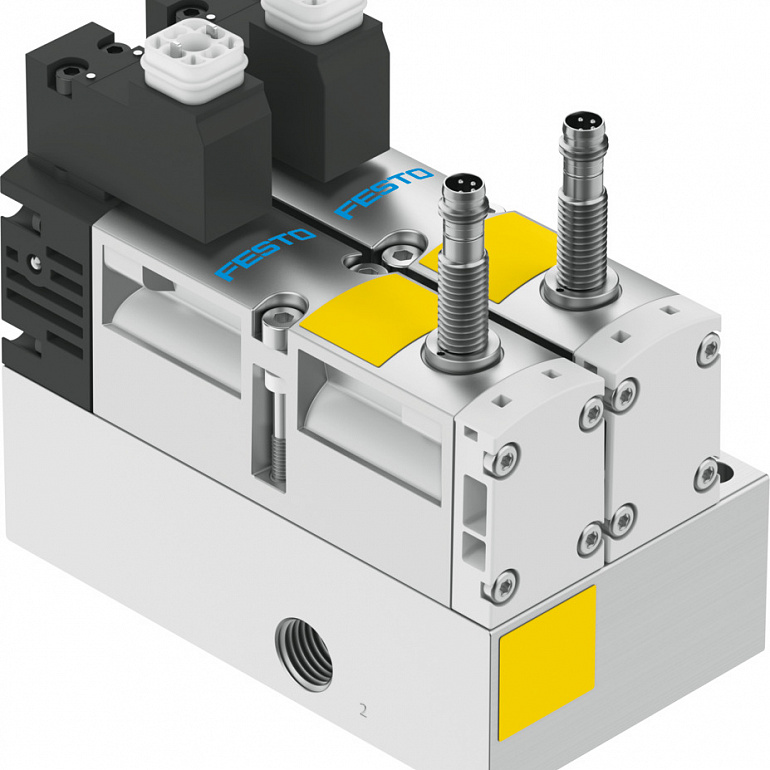

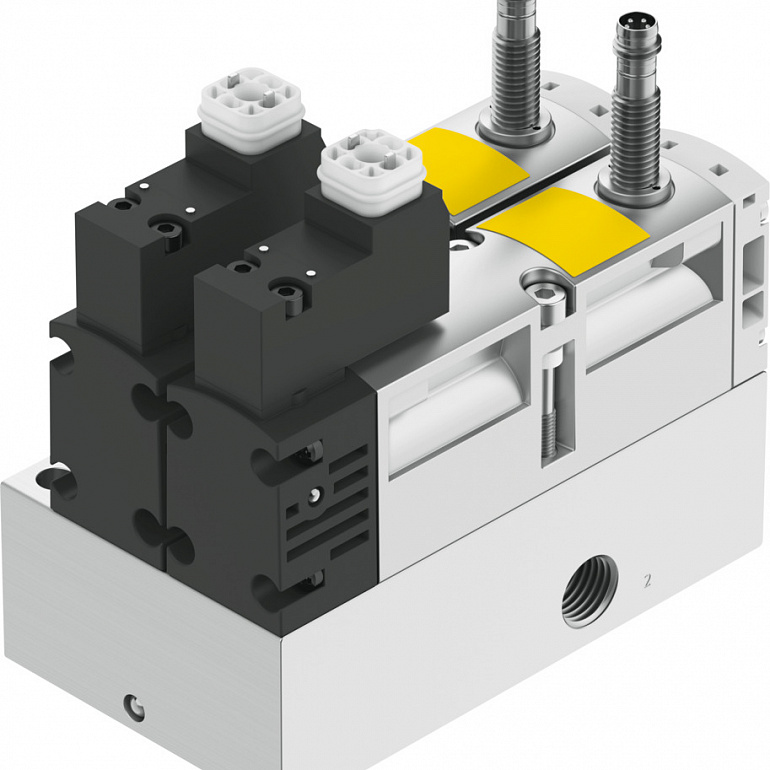

| Technical Data |
|
| Valve function |
3/2-way, closed, monostable |
| Type of actuation |
Electric |
| Construction width |
65 |
| Standard nominal flow rate (standardised to DIN 1343) |
1050 |
| pneumatic working port |
G1/4 |
| Operating voltage |
24V DC |
| Operating pressure |
0145 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Degree of protection |
IP65NEMA 4 |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EC Machinery Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK regulations for machines |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
EN 60947-5-2 |
| Manual override |
None |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
Non-reversible |

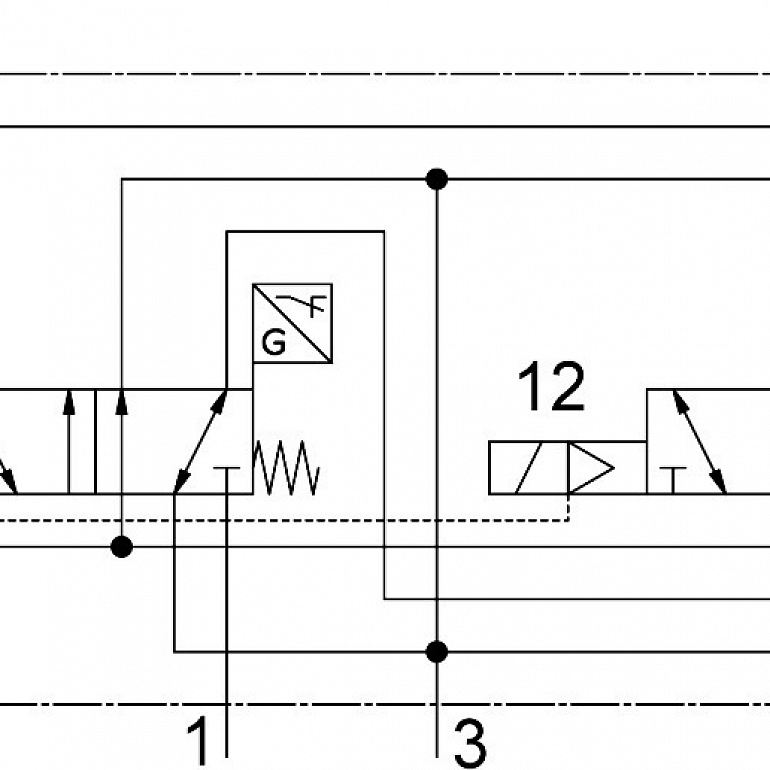

| Symbol |
00997399 |
| Measuring principle |
Inductive |
| lap |
Overlap |
| Reverse polarity protection sensor |
For all electrical connections |
| Safety function |
ExhaustProtection against manipulation, prevention of unexpected start-up |
| Performance Level (PL) |
Exhausting/up to category 4, performance level eProtection against manipulation, prevention of unexpected start-up/up to category 4, Performance Level e |
| Note on forced dynamization |
Switching frequency min. 1/week |
| Signal status display |
With accessories |
| Switching position sensing |
Normal position via sensor |
| Switching status display sensor |
LED |
| Pilot pressure |
310 |
| Suitability for vacuum |
no |
| Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) |
2650 |
| Standard flow rate exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) in case of error |
1050 |
| Switching time off |
54 |
| Switching time on |
24 |
| Valve - sensor switching time on |
58 |
| Valve - sensor switching time off |
11 |
| Duty cycle |
100% |
| Max. positive test pulse with 0 signal |
1000 |
| Max. negative test pulse with 1 signal |
800 |
| Switching output |
PNP |
| Characteristic coil data |
24 V DC: 1.8 W |
| Permissible voltage fluctuations |
-15%/+10% |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Max. magnetic interference field |
60 mT |
| Media temperature |
-550 |
| Sound pressure level |
85 |
| Protection against direct and indirect contact |
PELVProtection class to EN60950/IEC 950 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-550 |
| Nominal altitude of use |
1000 m in accordance with VDE 0580 |
| Product weight |
1134 |
| Operating voltage range, DC sensor |
1030 |
| Short-circuit strength sensor |
Pulsed |
| Idle current sensor |
10 |
| Max. output current sensor |
200 |
| Max. switching frequency sensor |
5000 |
| Residual ripple sensor |
± 10% |
| Voltage drop sensor |
2 |
| Electrical connection |
Type CTo EN 175301-803Without protective earth conductor |
| Sensor connection |
Plug3-pinM8x1 |
| Type of mounting |
With through-hole |

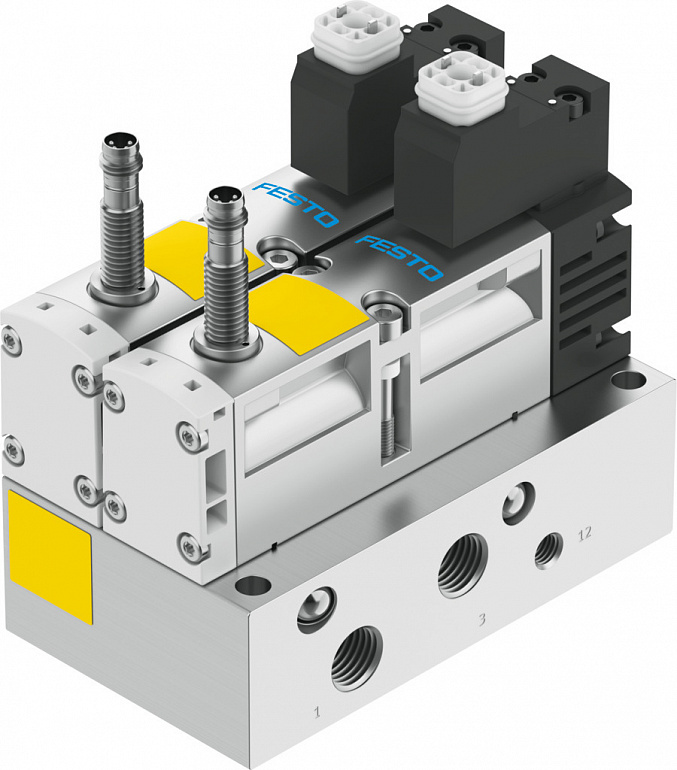

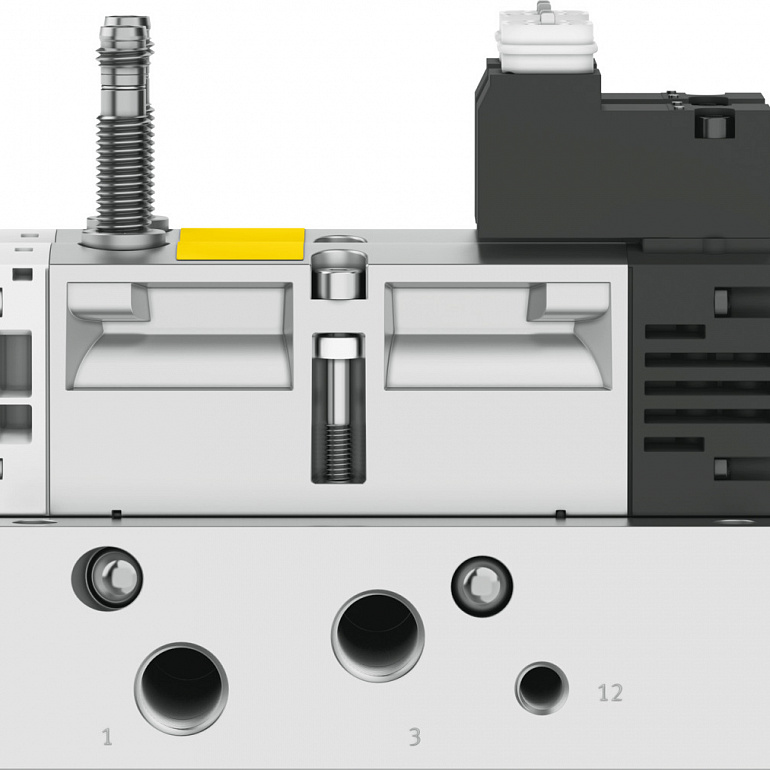

| Pilot air port 12/14 |
M7 |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Pneumatic connection, port 3 |
G1/4 |
| Note on materials |
RoHS-compliant |
| Material seals |
FPMHNBRNBR |
| Material housing |
Die-cast aluminiumPA |
| Material screws |
Galvanised steel |
| Switching element function |
N/C contact |
