| Technical Data |
|
| Height compensator for suction cup |
10.5 |
| Min. workpiece radius |
80 |
| Suction cup diameter |
30 |
| Suction cup volume |
9.47 |
| Position of connection |
Top |
| Mounting position |
optional |
| Symbol |
00991485 |
| Suction cup shape |

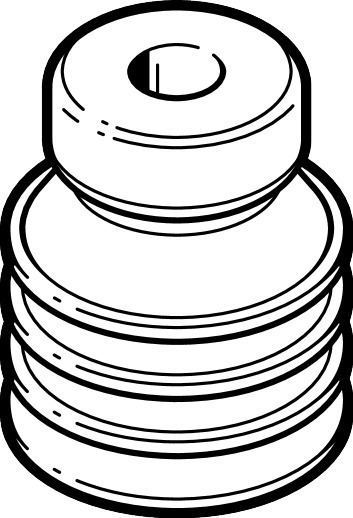

Round bellows 3.5 convolutions |
| Operating pressure |
-13.7750 |
| Nominal operating pressure |
-10.15 |
| Operating medium |
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-30180 |
| Holding force at nominal operating pressure |
20.8 |
| Product weight |
5.8 |
| Colour |
Transparent |
| Shore hardness |
50 +/- 5 |
| Note on materials |
RoHS-compliant |
| Material suction cup |
VMQ (silicone) |
