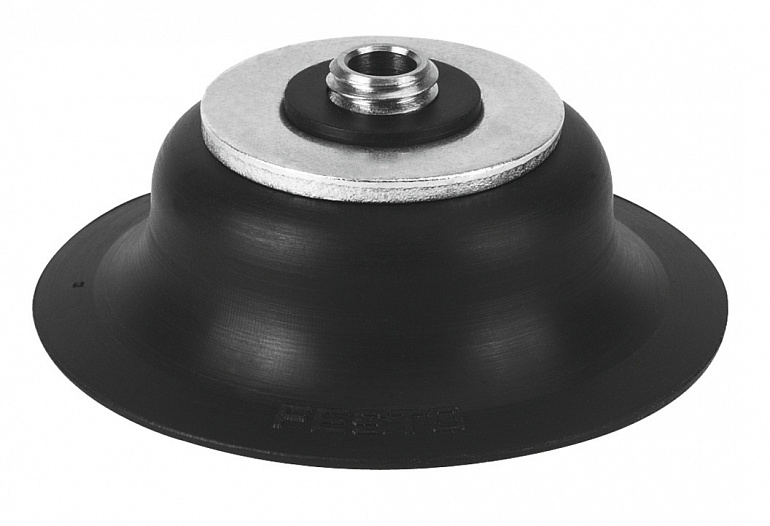

| Technical Data |
|
| Min. workpiece radius |
230 |
| Nominal size |
3 |
| Suction cup diameter |
40 |
| Suction cup volume |
1.566 |
| Position of connection |
Top |
| Mounting position |
optional |
| Symbol |
00991485 |
| Correlation to suction-cup holder |
Size 4 |
| Suction cup shape |
Round, flat |
| Operating pressure |
-13.7750 |
| Nominal operating pressure |
-10.15 |
| Operating medium |
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-A1-L |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-1070 |
| Holding force at nominal operating pressure |
69.6 |
| Lateral force at nominal operating pressure |
60 |
| Product weight |
16.3 |
| Type of mounting |
Via vacuum port |
| Vacuum connection |
M6 |
| Colour |
Black |
| Shore hardness |
60 +/- 5 |
| Material screwed plug |
Nickel-plated wrought aluminium alloyNickel-plated brassSteel, galvanised and chrome-plated |
| Note on materials |
RoHS-compliant |
| Material suction cup |
NBR |
