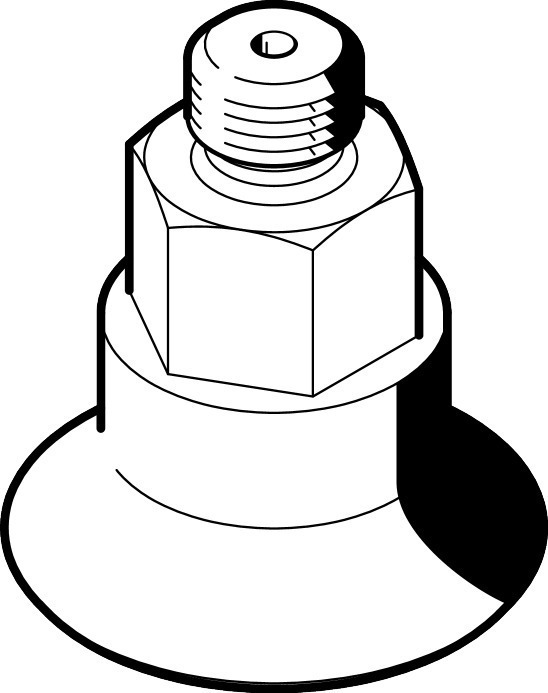

| Technical Data |
|
| Height compensator for suction-cup holder |
5.5 |
| Min. workpiece radius |
35 |
| Nominal size |
2.5 |
| Suction cup diameter |
40 |
| Suction cup volume |
5.4 |
| Mounting position |
optional |
| Symbol |
00991485 |
| Correlation to suction-cup holder |
Size 5 |
| Suction cup shape |
Round deep |
| Operating pressure |
-0.950 |
| Nominal operating pressure |
-0.7 |
| Operating medium |
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-A1-L |
| Ambient temperature |
-1080 |
| Holding force at nominal operating pressure |
64 |
| Lateral force at nominal operating pressure |
20 |
| Product weight |
15 |
| Type of mounting |
Via vacuum port |
| Vacuum connection |
M10 |
| Colour |
Red-brown |
| Shore hardness |
72 +/- 5 |
| Material screwed plug |
Wrought aluminium alloy |
| Note on materials |
RoHS-compliant |
| Material suction cup |
Vulkollan |
