| Technical Data |
|

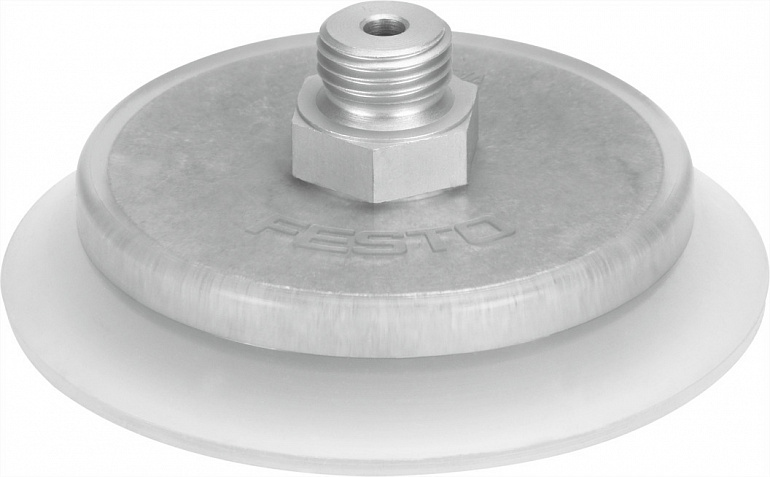

| Height compensator for suction cup |
3.5 |
| Nominal size |
4 |
| Suction cup diameter |
75 |
| Suction cup volume |
18.3 |
| Effective suction diameter |
66.7 |
| Position of connection |
Top |
| Mounting position |
optional |
| Symbol |
00991485 |
| Suction cup shape |
Round, flat |
| Operating pressure |
-13.7750 |
| Nominal operating pressure |
-10.15 |
| Operating medium |
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-40200 |
| Holding force at nominal operating pressure |
245 |
| Product weight |
62 |
| Type of mounting |
Via vacuum port |
| Vacuum connection |
G1/4 |
| Colour |
Transparent |
| Shore hardness |
60 +/- 5 |
| Material screwed plug |
Wrought aluminium alloy |
| Note on materials |
RoHS-compliant |
| Material suction cup |
VMQ (silicone) |
