| Technical Data |
|

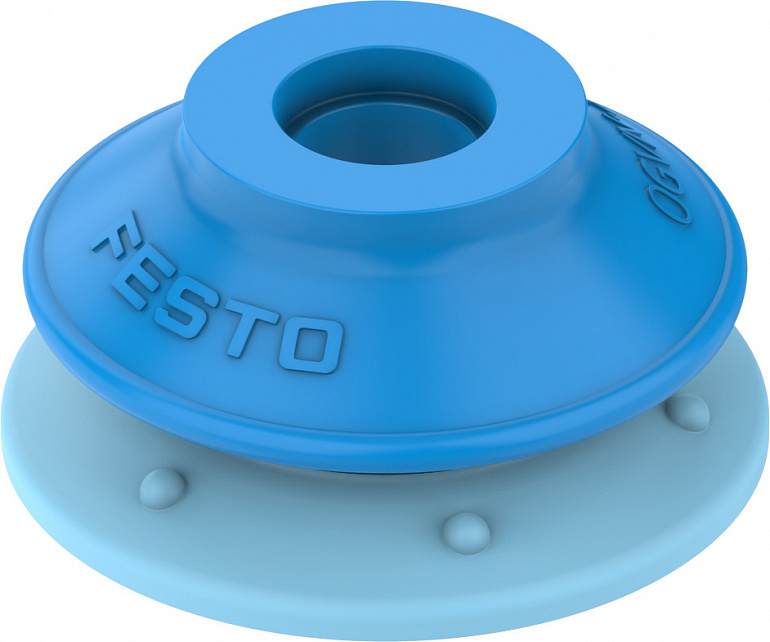

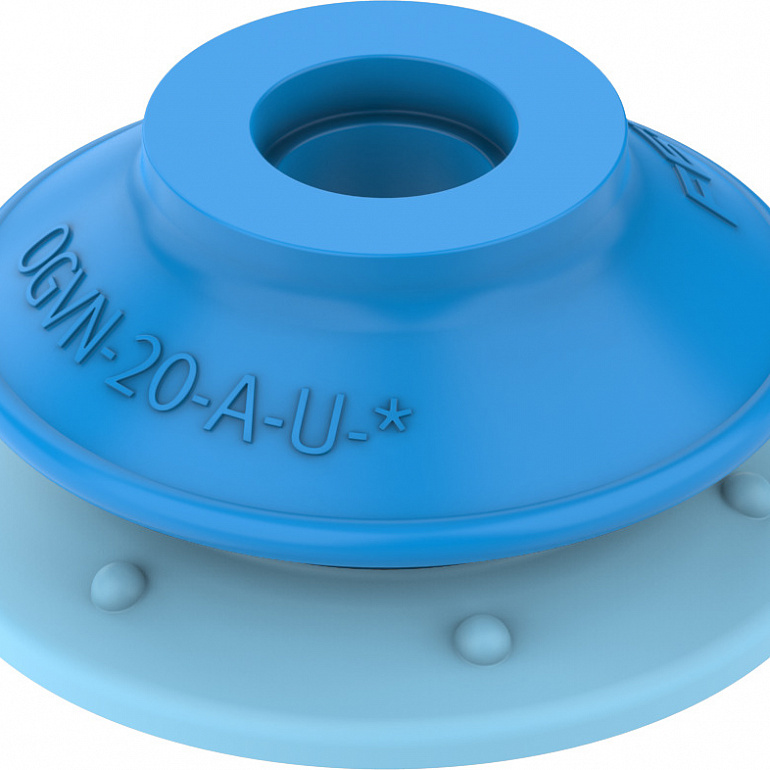

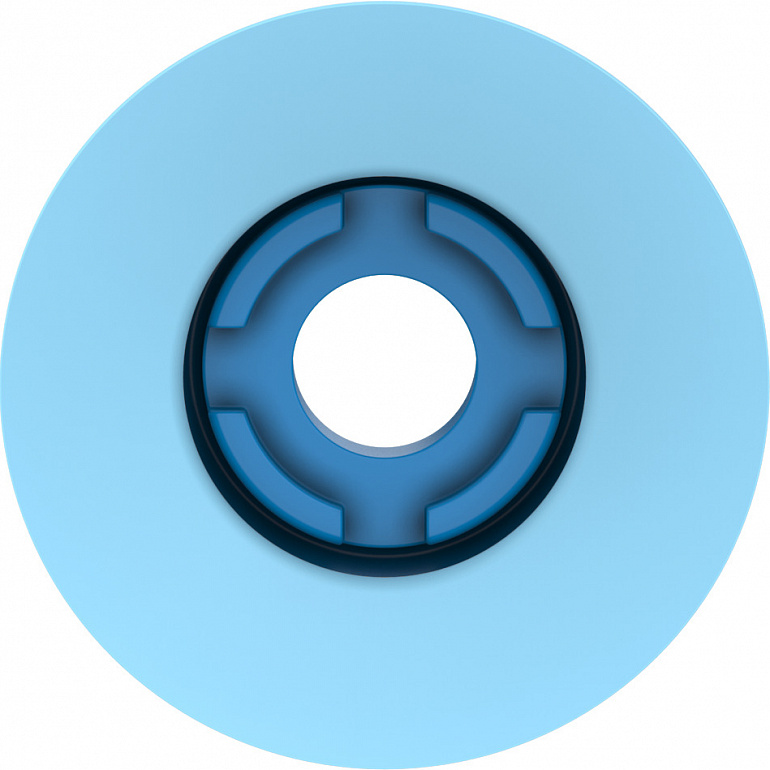

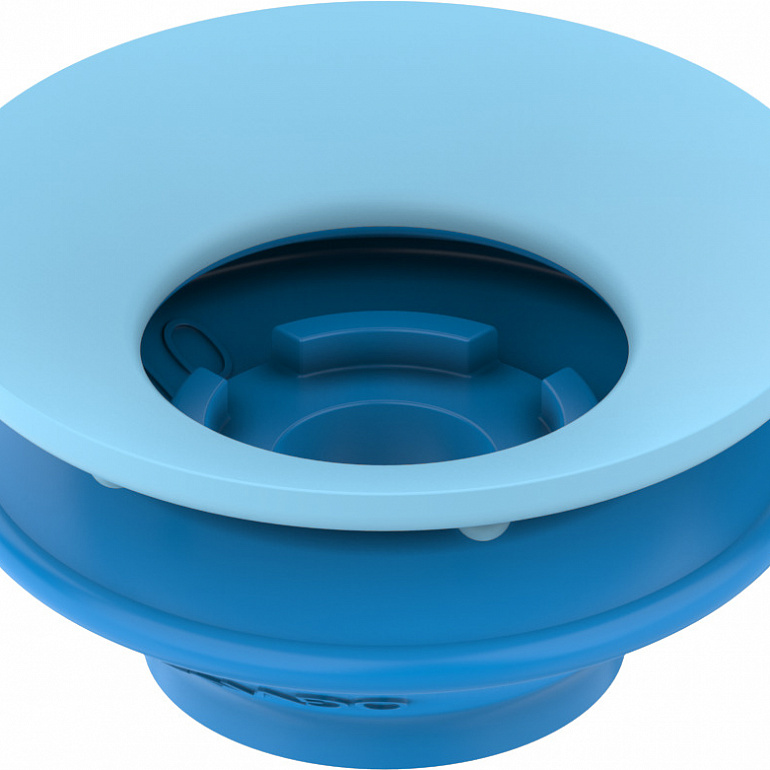

| Height compensator for suction cup |
4.6 |
| Suction cup diameter |
20 |
| Suction cup volume |
1.04 |
| Position of connection |
Top |
| Mounting position |
optional |
| Symbol |
00991485 |
| Suction cup shape |
Round bellows 1.5 convolutions |
| Operating pressure |
-13.7750 |
| Nominal operating pressure |
-10.15 |
| Operating medium |
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Suitability for the production of Li-ion batteries |
Suitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni |
| Ambient temperature |
1045 |
| Product weight |
1.1 |
| Type of mounting |
Via vacuum port |
| Colour |
Blue/light blue |
| Shore hardness |
A 30 +/-5A 70 +/-5 |
| Note on materials |
RoHS-compliant |
| Material suction cup |
PUR |
