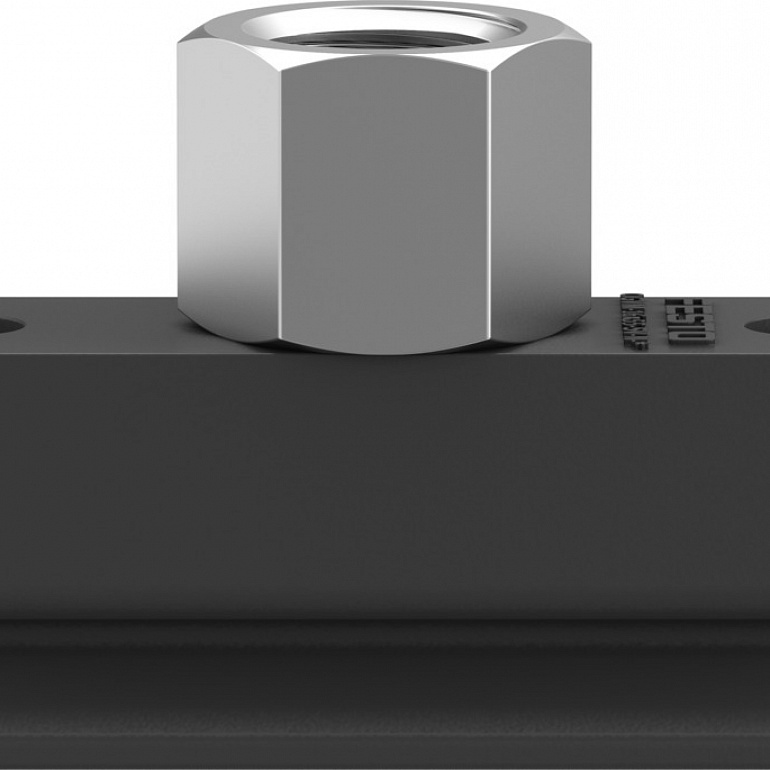

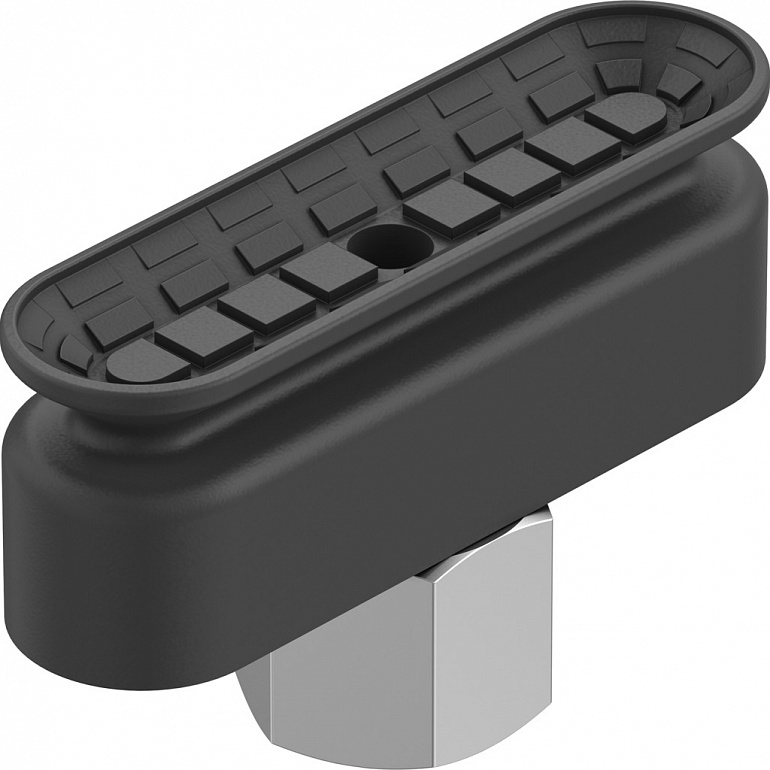

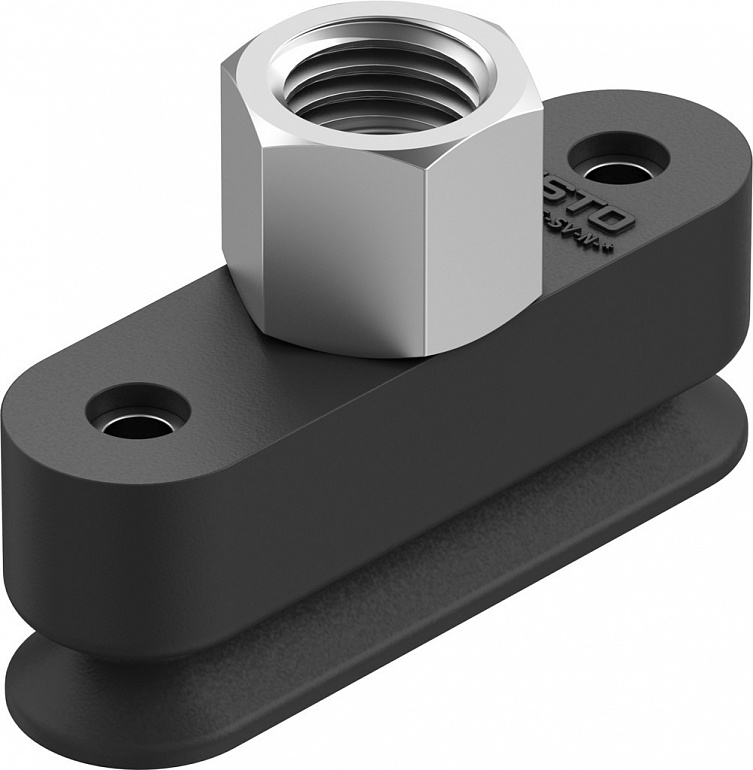

| Technical Data |
|
| Height compensator for suction cup |
3 |
| Min. workpiece radius |
10 |
| Nominal size |
3 |
| Suction cup size |
16x55 mm |
| Suction cup volume |
2 |
| Position of connection |
Top |
| Mounting position |
optional |
| Symbol |
00991485 |
| Suction cup shape |
Oval, flat |
| Operating pressure |
-13.7750 |
| Nominal operating pressure |
-0.6 |
| Operating medium |
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-A1-L |
| Ambient temperature |
-2080 |
| Holding force at nominal operating pressure |
36 |
| Vertical lateral force at nominal operatin pressure |
40 |
| Product weight |
29 |
| Type of mounting |
Via vacuum port |
| Vacuum connection |
Female thread G1/4 |
| Colour |
Black |
| Shore hardness |
60 +/- 5 |
| Material screwed plug |
Wrought aluminium alloy |
| Note on materials |
RoHS-compliant |
| Material suction cup |
NBR |
