| Technical Data |
|
| Mounting position |
optional |
| Position of connection |
On top/at side |
| Symbol |
00995229 |

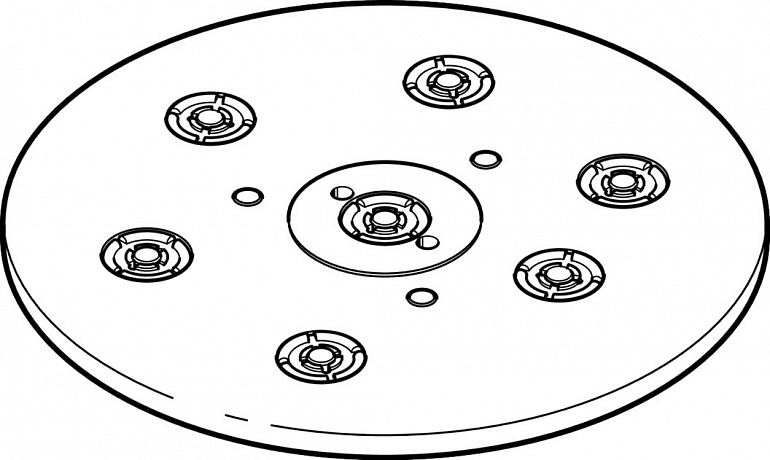

| Gripper diameter |
140 |
| Operating pressure |
06 |
| Nominal operating pressure |
1 |
| Air consumption at nominal operating pressure |
110 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Media temperature |
060 |
| Ambient temperature |
060 |
| Sound pressure level at nominal operating pressure |
65 |
| Sound level at nominal operating pressure |
78 |
| Holding force at nominal operating pressure |
6 |
| Lateral force at nominal operating pressure |
12 |
| Type of mounting |
Via female thread |
| Pneumatic connection |
G1/8 |
| alternative connections |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material housing |
Wrought aluminium alloyAnodised |
| Material spacer |
NBRPOM |
| Product weight |
348 |
