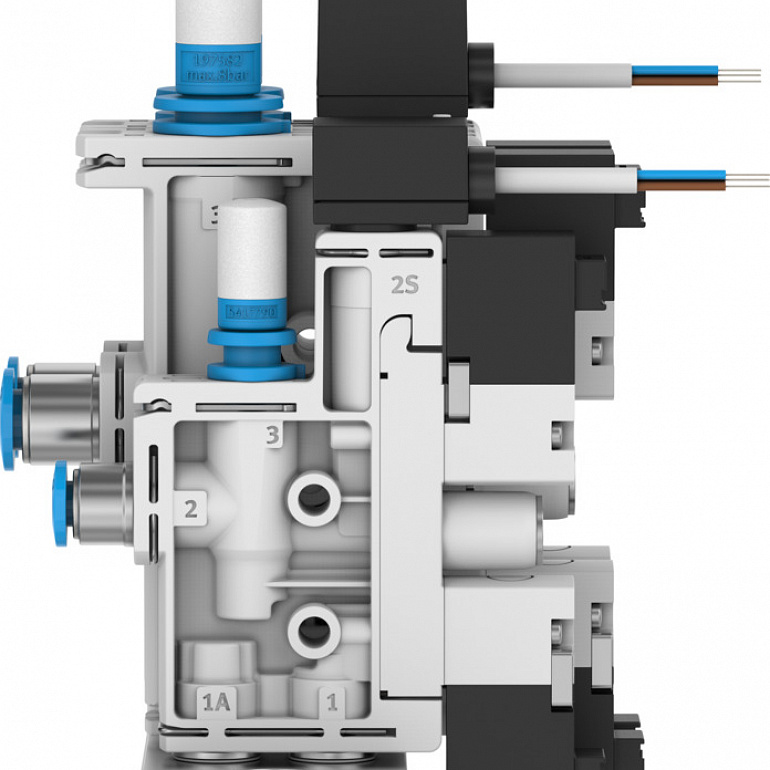

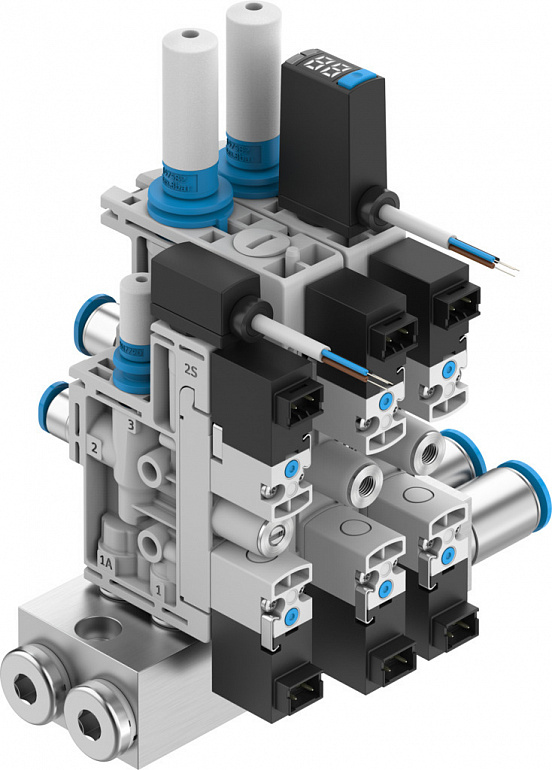

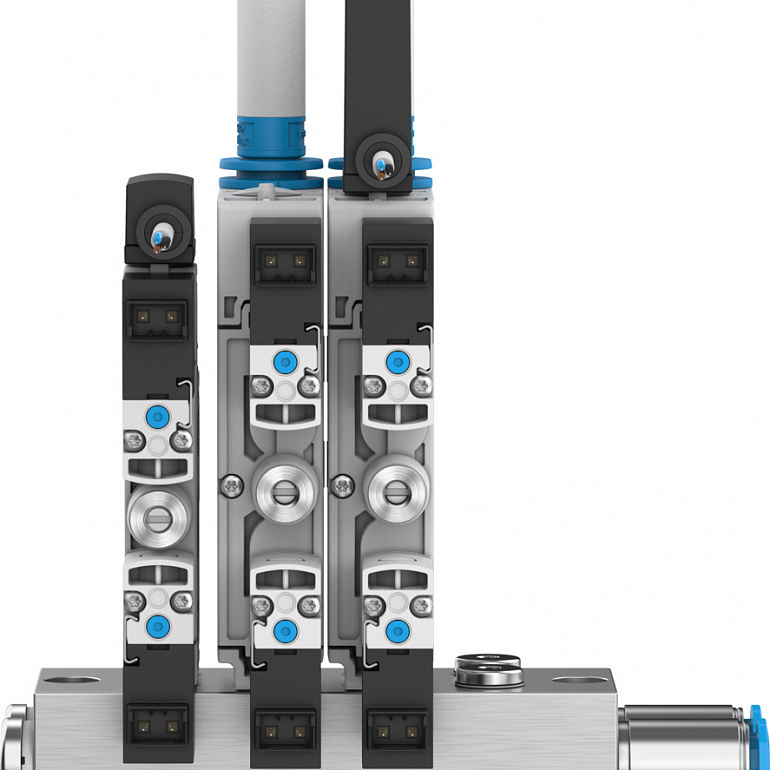

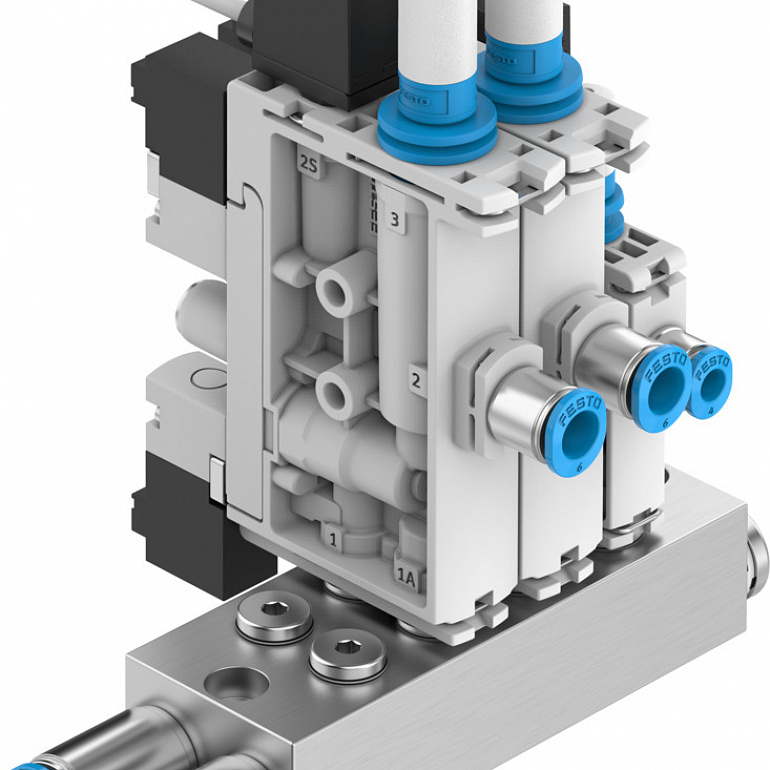

| Technical Data |
|
| Nominal size, Laval nozzle |
0.450.95 |
| Grid dimension |
1015 |
| Silencer design |
Open |
| Number of device positions |
28 |
| Mounting position |
optional |
| Ejector characteristic |
High suction rateHigh vacuumStandard |
| Grade of filtration |
40 |
| Manual override |
Non-detenting |
| Integrated function |
Electric ejector pulseFlow controlPressure sensorPressure transmitterElectric on-off valveFilterOpen silencer |
| Design |
For connection position on both sidesFor connection position on the side |
| Switching element function |
N/C or N/O contact, switchable |
| Switching function |
Freely programmable |

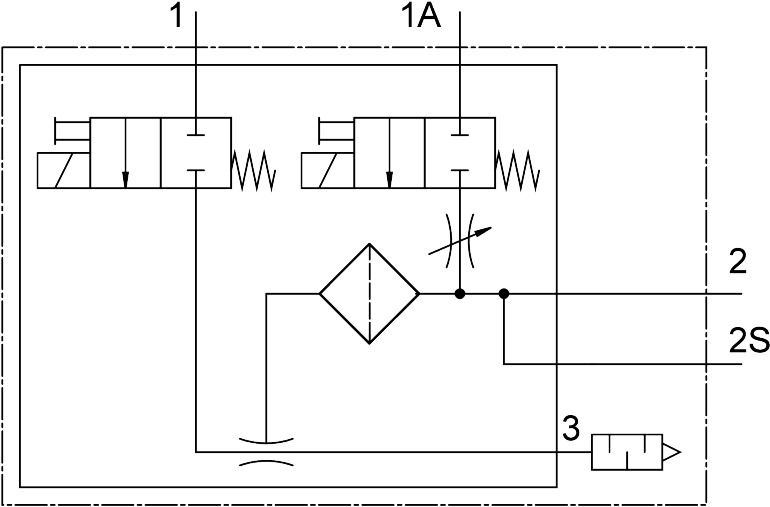

| Symbol |
00995803009958060099580700995810 |
| Valve function |
Closed |
| Measurement method |
Piezoresistive pressure sensorPiezoresistive pressure sensor with display |
| Display type |
LED indicator2-digit |
| Setting options |
IO-Link®Teach-inVia display and keys |
| Operating pressure for max. suction flow rate |
36 |
| Operating pressure |
29101.5 |
| Operating pressure for max. vacuum |
3.84.5 |
| Max. vacuum |
8992 |
| Nominal operating pressure |
58 |
| Max. suction flow rate against atmosphere |
445 |
| Air supply time at nominal operating pressure with ejector pulse |
0.42 |
| Analogue output |
0 - 10 V1 - 5 V |
| Operational voltage range DC |
21.626.4 |
| Duty cycle |
100% |
| Switching output |
PNP/NPN, switchable |
| Characteristic coil data |
24 V DC: 1.28 W24 V DC: 1.0 W |
| Approval |
c UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
050 |
| Sound pressure level at nominal operating pressure |
5268 |
| Degree of protection |
IP40 |
| Ambient temperature |
050 |
| Product weight |
118890 |
| Operating voltage range, DC sensor |
1030 |
| Pressure measuring range |
-14.50 |
| Electrical connection input, function |
Ejector pulseVacuum generation |
| Electrical connection input, connection type |
2x plug connector |
| Electrical connection input, connector system |
Connection pattern H |
| Electrical connection input, number of connections/cores |
2 |
| Electrical connection input, connection pattern |
00995626 |
| Input electrical connection, mounting type |
Snap-locking |
| Electrical connection output, function |
Sensor |
| Electrical connection output, connection type |
Cable |
| Electrical connection output, connector system |
Open end |
| Electrical connection output, number of connections/cores |
3 |
| Cable characteristic |
Suitable for energy chains |
| Cable diameter |
2.9 |
| Cable diameter tolerance |
± 0.1 mm |
| Cable length |
2.5 |
| Nominal cross section conductor |
0.14 |
| Type of mounting |
With through-hole |
| Pneumatic connection, port 1 |
Female thread G1/8For tubing outside diameter of 6 mmFor tubing outer diameter of 8 mm |
| Pneumatic connection, port 3 |
For tubing O.D. 4 mmFor tubing O.D. 6 mmOpen silencer |
| Vacuum connection |
For tubing O.D. 3 mmFor tubing outside diameter of 4 mmFor tubing O.D. 6 mm |
| Cable sheath colour |
Grey |
| Material connecting thread |
POM |
| Note on materials |
RoHS-compliant |
| Material sub-base |
Wrought aluminium alloy |
| Material seals |
NBR |
| Material receiver nozzle |
POM |
| Material filter |
POM |
| Material housing |
PA-reinforced |
| Material hollow bolt |
Wrought aluminium alloy |
| Material cable sheath |
PVC |
| Material adjusting screw |
Steel |
| Material silencer |
PA-reinforced |
| Material screws |
Steel |
| Material transmitter nozzle |
Wrought aluminium alloy |
| Material fitting |
Nickel-plated brass |
