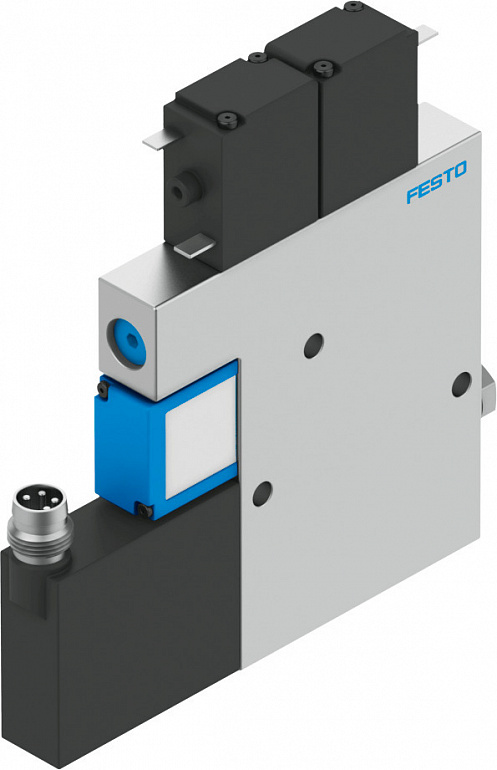

| Technical Data |
|
| Nominal size, Laval nozzle |
0.45 |
| Grid dimension |
10 |
| Silencer design |
Closed |
| Mounting position |
optional |
| Ejector characteristic |
High vacuum |
| Grade of filtration |
40 |
| Manual override |
Non-detenting |
| Integrated function |
Electric ejector pulse valveFlow controlElectric on-off valveFilterCheck valveVacuum switch |
| Measured variable |
Relative pressure |
| Measuring principle |
Piezoresistive |
| Switching element function |
N/O contact |
| Switching function |
Threshold value comparator |
| Symbol |
00991306 |
| Valve function |
Closed |
| Reverse polarity protection |
For all electrical connections |
| Display type |
LED |
| Setting range hysteresis |
-7.25-0.725 |
| Setting options |
Potentiometer |
| Switching status indication |
Optical |
| Setting range threshold value |
-13.050 |
| Operating pressure |
21.75116 |
| Max. vacuum |
85 |
| Nominal operating pressure |
87 |
| Max. overload pressure |
5 |
| Air supply time at nominal operating pressure with ejector pulse |
1.9 |
| Operational voltage range DC |
21.626.4 |
| Duty cycle |
100% |
| Switching output |
PNP |
| Approval |
RCM trademarkc UL us - Recognized (OL) |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
060 |
| Degree of protection |
IP65 |
| Ambient temperature |
050 |
| Product weight |
90 |
| Pressure measuring range |
014.5 |
| Electrical connection |
4-pinM8x1Plugs |
| Type of mounting |
Either:With through-holeVia female thread |
| Pneumatic connection, port 1 |
M5 |
| Pneumatic connection, port 3 |
Integrated silencer |
| Vacuum connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material receiver nozzle |
Brass, nickel-plated |
| Material filter |
PA |
| Material filter housing |
PC |
| Material housing |
Wrought aluminium alloy |
| Material silencer |
PEPOM |
| Material piston |
POM |
| Material transmitter nozzle |
Nickel-plated brass |
