SKU: 6890

GTIN: 4052568001452

Все характеристики

Technical Data
Nominal size, Laval nozzle	1
Mounting position	optional
Ejector characteristic	High vacuum
Integrated function	Ejector pulse, pneumatic
Design	T-shape

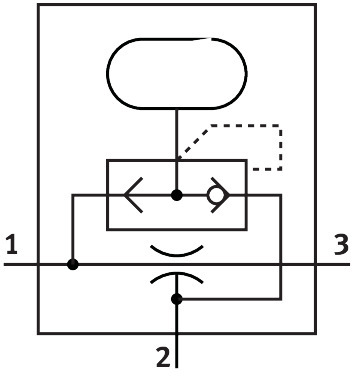

Symbol	00991484
Operating pressure	21.75145
Max. vacuum	80
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Media temperature	-2080
Ambient temperature	-2080
Type of mounting	With through-hole
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 3	G1/4
Vacuum connection	G1/4
Material housing	Die-cast aluminium
