| Technical Data |
|
| Nominal size, Laval nozzle |
1.4 |
| Mounting position |
optional |
| Ejector characteristic |
High vacuum |
| Integrated function |
Electric ejector pulse valveElectric on-off valve |
| Design |
T-shape |

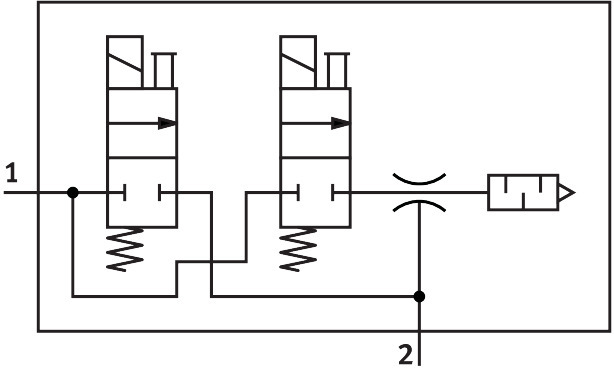

| Symbol |
00991493 |
| Operating pressure |
1.58 |
| Max. vacuum |
90 |
| Duty cycle |
100% |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media temperature |
050 |
| Degree of protection |
IP65 |
| Ambient temperature |
050 |
| Electrical connection |
Plugs |
| Type of mounting |
Via female thread |
| Pneumatic connection, port 1 |
G1/8 |
| Vacuum connection |
G1/4 |
| Material housing |
Aluminium |
