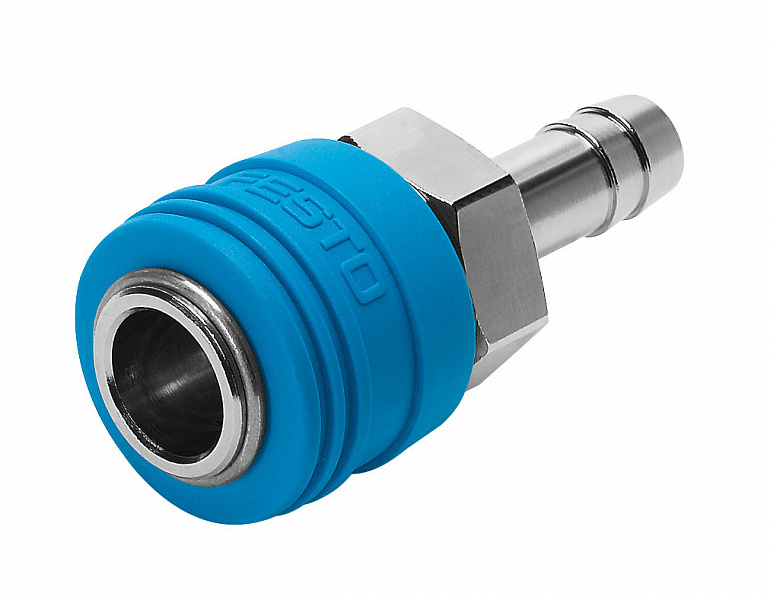

| Technical Data |
|
| Nominal size |
7.4 |
| Operating pressure complete temperature range |
-13.775174 |
| Standard nominal flow rate (standardised to DIN 1343) |
8101152 |
| Nominal flow rate standardised according to ISO 8778 |
8781248.8 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-1060 |
| Product weight |
57 |
| Pneumatic connection, port 1 |
Barbed hose fitting 9 mm |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material spring |
High-alloy stainless steel |
| Material housing |
Brass, nickel-plated |
| Material of inner raceway |
Brass |
| Material snap ring |
High-alloy stainless steel |
| Material pins |
High-alloy stainless steel |
| Valve body material |
Brass |
| Material releasing sleeve |
PP |
