| Technical Data |
|
| Based on standard |
NFPA/T3.5.29 R1-2007 |
| Cable designation |
Without inscription label holder |
| Frequency of connection |
100 |
| Product weight |
680 |
| Electrical connection 1, function |
Field device side |
| Electrical connection 1, design |
Round |
| Electrical connection 1, connection type |
Socket |

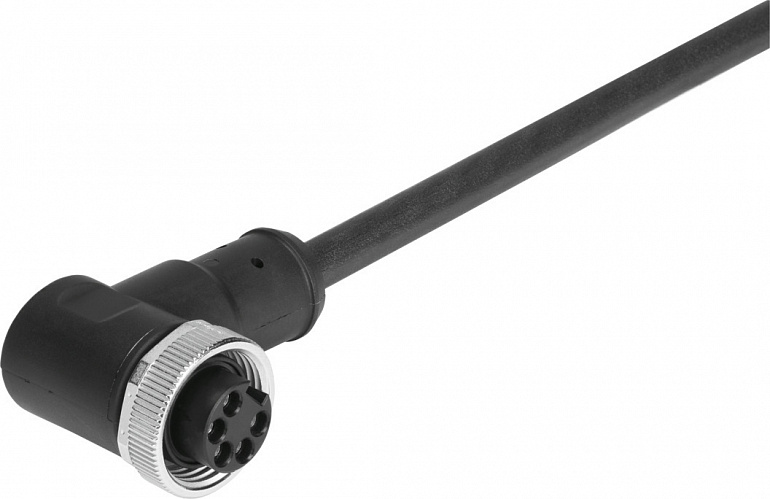

| Electrical connection 1, cable outlet |
Angled |
| Electrical connection 1, note on cable outlet |
Cable outlet not in line with the industry standard. Matched with the CPX protective cover. |
| Electrical connection 1, connector system |
G7/8 coded to NFPA/T3.5.29 R1-2007 |
| Electrical connection 1, number of connections/cores |
5 |
| Electrical connection 1, used connections/cores |
5 |
| Electrical connection 1, type of mounting |
Screw-type lock |
| Electrical connection 1, connection pattern |
00995652 |
| Electrical connection 2, function |
Controller side |
| Electrical connection 2, connection type |
Cable |
| Electrical connection 2, connector system |
Open end |
| Electrical connection 2, number of connections/cores |
5 |
| Electrical connection 2, used connections/cores |
5 |
| Operational voltage range DC |
0300 |
| Operational voltage range AC |
0300 |
| Current rating at 40° C |
9 |
| Immunity to surge |
4 |
| Cable length |
2 |
| Cable characteristic |
Standard |
| Test conditions cable |
Test conditions on request |
| Bending radius, fixed cable |
65 |
| Cable diameter |
8.7 |
| Cable diameter tolerance |
± 0.2 mm |
| Cable structure |
5 x 1.5 mm² |
| Nominal cross section conductor |
1.5 |
| Degree of protection |
IP65IP67 |
| Note on degree of protection |
In assembled state |
| Ambient temperature |
-2080 |
| CE mark (see declaration of conformity) |
To EU Low Voltage Directive |
| UKCA marking (see declaration of conformity) |
To UK regulations for electrical equipment |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Pollution degree |
3 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Material cable sheath |
TPE-U(PUR) |
| Cable sheath colour |
Black |
| Material housing |
TPE-U(PUR) |
| Housing colour |
Black |
| Material screw-type lock |
Nickel-plated brass |
| Material electrical contact |
Gold-plated brass |
