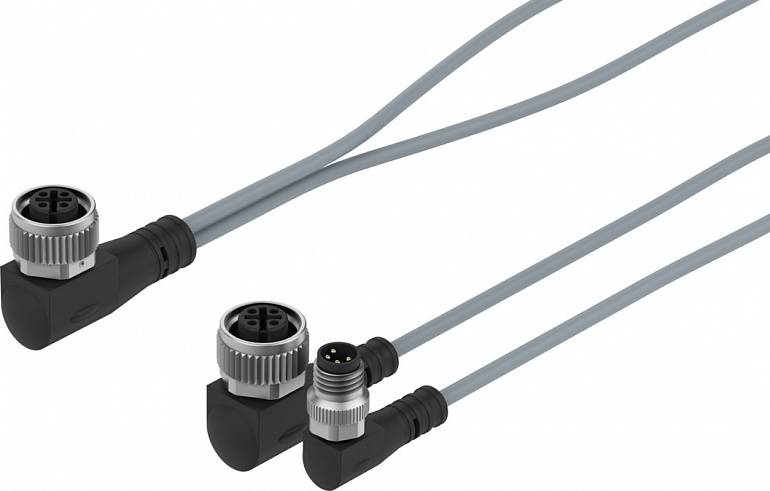

SKU: 2384165
GTIN: 4052568109219
Характеристики
| Electrical connection 1 | 2x angled socket, M12, 3-pin |
| Electrical connection 2 | Angled plug, M8, 4-pin |
| Cable length | 0.2 |
| Degree of protection | IP65 |
Все характеристики
| Technical Data | |
| Based on standard | EN 61076-2-101EN 61076-2-104EN 61984 |
| Mounting position | optional |
| Product weight | 28 |
| Electrical connection 1 | 2x angled socket, M12, 3-pin |
| Electrical connection 2 | Angled plug, M8, 4-pin |
| Operational voltage range DC | 030 |
| Current rating at 40° C | 2 |
| Cable length | 0.2 |
| Cable diameter | 2.9 |
| Cable structure | 2 x 0.14 mm² |
| Degree of protection | IP65 |
| Ambient temperature | -2580 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Material cable sheath | TPE-U(PUR) |
Приемущества
| For proportional valves VPWP |
| For connecting to sub-base VABP-S3 |
| Pre-assembled |
| Cable length 0.2 m |
| With PUR cable |
| Ambient temperature -25 ... +80 °C |
Документы
| NEDV_L2R1_V7_EN.PDF |
| Datasheet |
