| Technical Data |
|
| Protocol |
AS-Interface |
| Design |

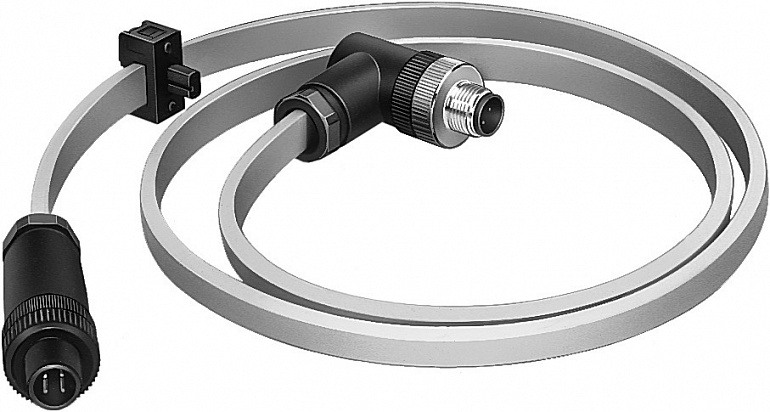

T-distributor with cables on both sides |
| Distrubution |
Y type |
| Additional functions |
Connecting the programming device to an AS-Interface component with AS-i flat cable. |
| Cable designation |
Without inscription label holder |
| Electrical connection 1, function |
Field device side |
| Electrical connection 1, design |
Angular |
| Electrical connection 1, connection type |
Socket |
| Electrical connection 1, cable outlet |
Angled |
| Electrical connection 1, connector system |
AS-Interface |
| Electrical connection 1, number of connections/cores |
2 |
| Electrical connection 1, used connections/cores |
2 |
| Electrical connection 1, type of mounting |
Plug-in |
| Electrical connection 1, connection pattern |
00995700 |
| Electrical connection 2, function |
Field device side |
| Electrical connection 2, design |
Round |
| Electrical connection 2, connection type |
Socket |
| Electrical connection 2, cable outlet |
Straight |
| Electrical connection 2, connector system |
M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 2, number of connections/cores |
4 |
| Electrical connection 2, used connections/cores |
2 |
| electrical connection 2, type of mounting |
Plug-in |
| Electrical connection 2, connection pattern |
00995614 |
| Electrical connection 3, function |
Controller side |
| Electrical connection 3, design |
Round |
| Electrical connection 3, connection type |
Plugs |
| Electrical connection 3, cable outlet |
Angled |
| Electrical connection 3, connector system |
M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 3, number of connections/cores |
4 |
| Electrical connection 3, used connections/cores |
2 |
| Electrical connection 3, type of mounting |
Plug-in |
| Electrical connection 3, connection pattern |
00995746 |
| Operational voltage range DC |
048 |
| Operational voltage range AC |
048 |
| Current rating at 40° C |
3 |
| Immunity to surge |
0.5 |
| Cable length 1 |
2.4 |
| Cable length 2 |
0.1 |
| Cable characteristic |
Standard |
| Test conditions cable |
Test conditions on request |
| Cable structure |
2 x 1.5 mm² |
| Nominal cross section conductor |
1.5 |
| Degree of protection |
IP20 |
| Note on degree of protection |
In assembled state |
| Ambient temperature |
-4085 |
| Ambient temperature with moving cable |
-2580 |
| CE mark (see declaration of conformity) |
In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK RoHS instructions |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Pollution degree |
2 |
| Material cable sheath |
Rubber compound |
| Cable sheath colour |
Yellow |
| Housing colour |
Black |
