| Technical Data |
|
| Cable designation |
With accessories |
| Frequency of connection |
500 |
| Product weight |
243 |

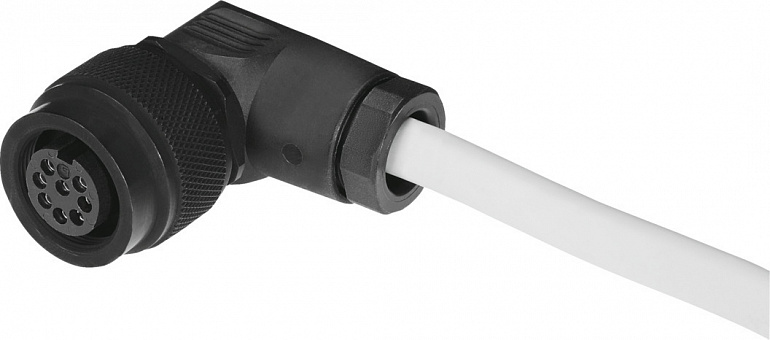

| Electrical connection 1, function |
Field device side |
| Electrical connection 1, design |
Round |
| Electrical connection 1, connection type |
Socket |
| Electrical connection 1, cable outlet |
Angled |
| Electrical connection 1, connector system |
M16x0.75 to EN 61076-2-106 |
| Electrical connection 1, number of connections/cores |
8 |
| Electrical connection 1, used connections/cores |
8 |
| Electrical connection 1, type of mounting |
Screw-type lock |
| Electrical connection 1, connection pattern |
00995734 |
| Electrical connection 2, function |
Controller side |
| Electrical connection 2, connection type |
Cable |
| Electrical connection 2, connector system |
Open end |
| Electrical connection 2, number of connections/cores |
8 |
| Electrical connection 2, used connections/cores |
8 |
| Operational voltage range DC |
030 |
| Current rating at 40° C |
5 |
| Immunity to surge |
0.6 |
| Shielding |
yes |
| Cable length |
2.5 |
| Cable characteristic |
Standard |
| Test conditions cable |
Test conditions on request |
| Cable diameter |
6.8 |
| Cable structure |
8 x 0.25 mm² |
| Nominal cross section conductor |
0.25 |
| Wire ends |
Cut off bluntly |
| Degree of protection |
IP67 |
| Note on degree of protection |
In assembled state |
| Ambient temperature |
-3080 |
| Ambient temperature with moving cable |
-570 |
| CE mark (see declaration of conformity) |
In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK RoHS instructions |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Note on materials |
RoHS-compliant |
| Pollution degree |
1 |
| Material cable sheath |
PVC |
| Cable sheath colour |
Grey |
| Material housing |
PA |
| Material screw-type lock |
PA |
