| Technical Data |
|
| Symbol |
00991965 |
| Approval |
RCM trademarkc UL us listed (OL) |
| UL ambient temperature |
-2060 |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| analog input |
Adapted for position sensors SMH-S1-HG |
| Ambient temperature |
-2070 |
| Switching output |
2xNPN |
| Switching function |
Freely programmable |
| Switching element function |
Switchable |
| Short circuit current rating |
Pulsed |
| Overload protection |
Available |
| Operational voltage range DC |
1030 |
| Electrical connection 1, connection type |
Socket |
| Electrical connection 1, connector system |
M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores |
4 |
| Electrical connection 1, type of mounting |
Screw-type lockNot rotatable |
| Electrical connection 1, compatible type of mounting |
Compatible with rotatable screw-type lock |

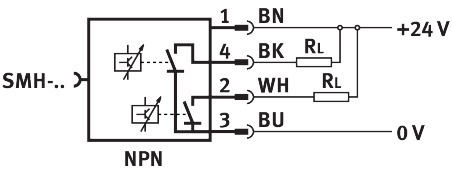

| Electrical connection 1, connection pattern |
00991872 |
| Electrical connection 2, connection type |
Plugs |
| Electrical connection 2, connector system |
M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 2, number of connections/cores |
4 |
| electrical connection 2, type of mounting |
Snap-lockingScrew-type lockNot rotatable |
| Electrical connection 2, compatible type of mounting |
Compatible with latching lockCompatible with rotatable screw-type lock |
| Electrical connection 2, connection pattern |
00991171 |
| Product weight |
19 |
| Material housing |
ABS |
| Setting options |
Teach-in |
| Degree of protection |
IP65 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
