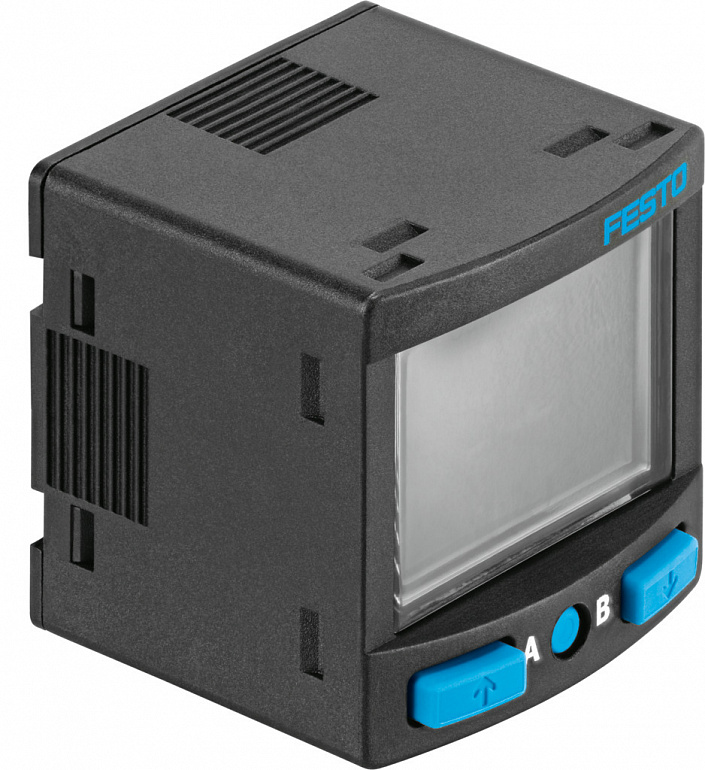

| Technical Data |
|
| Symbol |
00995688 |
| Approval |
RCM trademarkc UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Certificate issuing authority |
UL E322346 |
| Note on materials |
RoHS-compliant |
| Measured variable |
Current |
| analog input |
0 - 20 mA |
| Ambient temperature |
050 |
| Typical sampling interval |
1 |
| Accuracy in ± % FS |
0.5 |
| Repetition accuracy in ± %FS |
0.2 |
| Switching output |
2 x PNP or 2 x NPN, switchable |
| Switching function |
Freely programmable |
| Switching element function |
N/C or N/O contact, switchable |
| Max. output current |
100 |
| Short circuit current rating |
yes |
| Protocol |
IO-Link® |
| IO-Link, Protocol version |
Device V 1.1 |
| IO-Link, Profile |
Smart sensor profile |
| IO-Link, Function classes |
Binary data channel (BDC)Process data variable (PDV)IdentificationDiagnosticsTeach channel |
| IO-Link, communication mode |
COM2 (38.4 kBaud) |
| IO-Link, SIO-Mode support |
Yes |
| IO-Link, Port class |
A |
| IO-Link, Process data length OUT |
0 bytes |
| IO-Link, Process data length IN |
5 bytes |
| IO-Link, Process data content IN |
14 bit PDV (measured value InA)14 bit PDV (measured value InB)2 bit BDC (measured value monitoring) |
| IO-Link, Min. cycle time |
5 ms |
| IO-Link, Data storage required |
500 |
| Operational voltage range DC |
1530 |
| Reverse polarity protection |
For all electrical connections |

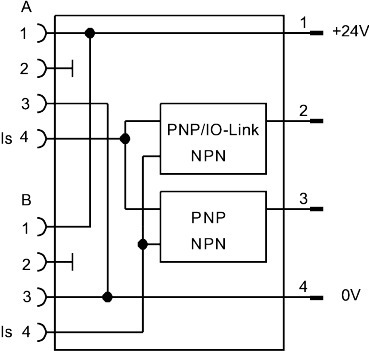

| Electrical connection 1, connection type |
Plugs |
| Electrical connection 1, connector system |
Connection pattern L1J |
| Electrical connection 1, number of connections/cores |
4 |
| Electrical connection 1, connection pattern |
00995428 |
| Electrical connection 2, connection type |
2x socket |
| Electrical connection 2, connector system |
Connection pattern EC |
| Electrical connection 2, number of connections/cores |
4 |
| Electrical connection 2, connection pattern |
00995750 |
| Type of mounting |
Front panel mountingVia wall/surface bracket |
| Product weight |
23 |
| Material housing |
PA-reinforced |
| Display type |
Illuminated LCD, multi-colour |
| Setting options |
IO-Link®Teach-inVia display and keys |
| Protection against tampering |
IO-LinkPIN code |
| Degree of protection |
IP40 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
