| Technical Data |
|
| Symbol |
00991611 |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EC Machinery Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
Relative pressure |
| Measurement method |
Metal thin-film pressure sensor |
| Operating pressure |
-110 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible |
| Switching output |
2xPNP |
| Switching function |
Threshold value with fixed hysteresis |
| Switching element function |
Antivalent |
| Switch-on point |
0.25 |
| Switch-on point max. |
0.4 |
| Switch-off point min. |
0.05 |
| Max. output current DC |
500 |
| Short circuit current rating |
yes |
| Operational voltage range DC |
19.230 |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection |
4-pinM12x1PlugsTo EN 60947-5-2Round design |
| Electrical connection 1, connection type |
Plugs |
| Electrical connection 1, connector system |
M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores |
4 |
| Electrical connection 1, type of mounting |
Screw-type lockNot rotatable |
| Electrical connection 1, compatible type of mounting |
Compatible with rotatable screw-type lock |

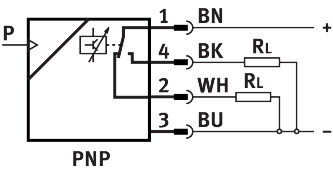

| Electrical connection 1, connection pattern |
00995386 |
| Type of mounting |
Screw-in |
| Pneumatic connection |
G1/8 |
| Product weight |
50 |
| Material housing |
High-alloy stainless steel |
| Material electrical connection |
PBT |
| Setting options |
Permanently set |
| Degree of protection |
IP65 |
| Corrosion resistance class CRC |
4 - Very high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
