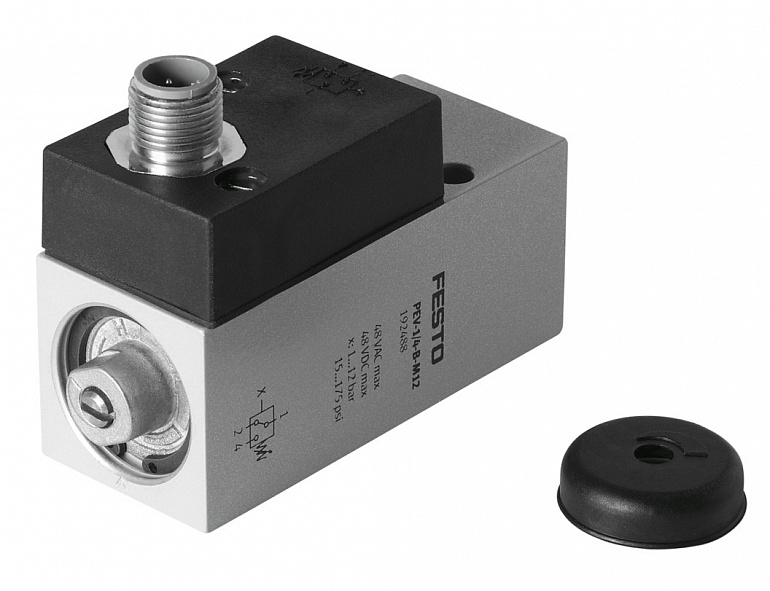

SKU: 192488

GTIN: 4052568007966

Все характеристики

Technical Data
Conforms to standard	EN 60947-5-1
Symbol	00991472
Approval	CCCc UL us - Recognized (OL)
CE mark (see declaration of conformity)	To EU Low Voltage Directive
UKCA marking (see declaration of conformity)	To UK regulations for electrical equipment
Explosion protection	The information in the certificate must be observed!Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
Note on materials	RoHS-compliant
Measured variable	Relative pressure
Measurement method	Pneumatic/electric pressure transducer
Operating pressure	112
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]Water
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Media temperature	-2080
Ambient temperature	-2080
Switching element function	Changeover switch
Max. switching frequency	3
Max. switching output voltage AC	48
Max. switching output voltage DC	48
Max. output current	4000
Min. load current	1 mA at 24 V10 mA at 10 V100 mA at 5 V
Utilisation category - inductive load	AC-14DC-13
Utilisation category - resistive load	AC-12DC-12
Electrical connection	4-pinM12x1PlugsTo EN 60947-5-2Round design
Type of mounting	With through-hole
Mounting position	optional
Pneumatic connection	G1/4
Product weight	194
Material housing	Die-cast aluminium
Material switch contact	Silver
Setting range threshold value	112
Degree of protection	IP65
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
