| Technical Data |
|
| Symbol |
00991891 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
Differential pressureRelative pressure |
| Measurement method |

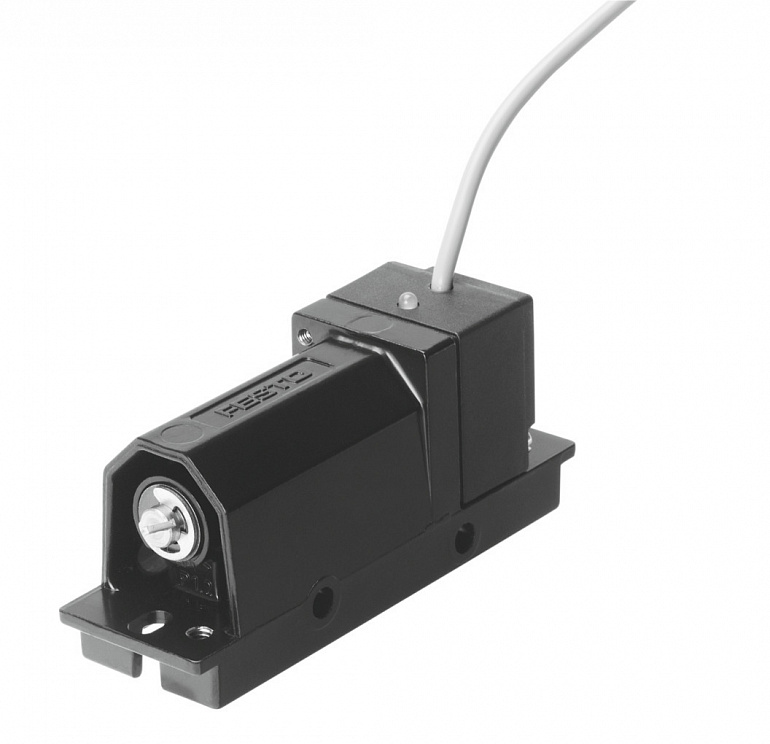

Pneumatic/electric differential pressure switch |
| Operating pressure |
-18 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-2060 |
| Ambient temperature |
-2060 |
| Switching output |
PNP |
| Switching element function |
N/O contact |
| Max. switching frequency |
70 |
| Max. output current |
350 |
| Short circuit current rating |
yes |
| Operational voltage range DC |
1230 |
| Electrical connection |
3-wireCableOpen end |
| Cable length |
2.5 |
| Material cable sheath |
PUR |
| Type of mounting |
Either:On 2n mounting frameWith through-hole |
| Mounting position |
optional |
| Pneumatic connection |
M5 |
| Product weight |
240 |
| Material housing |
Die-cast zinc |
| Material sealing ring |
NBR |
| Switching status indication |
Yellow LED |
| Setting range threshold value |
-0.88 |
| Degree of protection |
IP67 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
