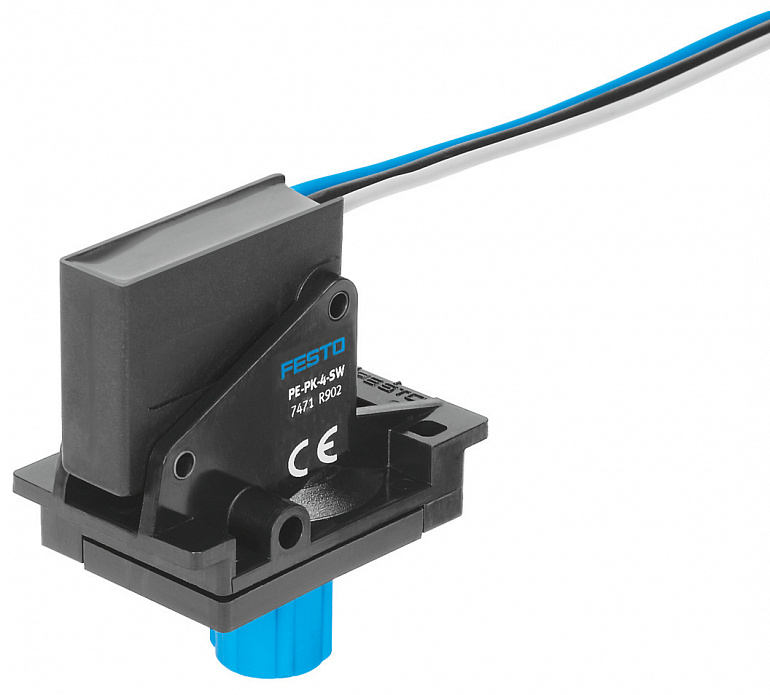

SKU: 7471

GTIN: 4052568111106

Все характеристики

Technical Data
Conforms to standard	EN 60947-5-1
Symbol	00995409
CE mark (see declaration of conformity)	To EU Low Voltage Directive
UKCA marking (see declaration of conformity)	To UK regulations for electrical equipment
Measured variable	Relative pressure
Measurement method	Pneumatic/electric pressure transducer
Operating pressure	00.25
Max. overload pressure	8
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible
Media temperature	060
Ambient temperature	060
Switching output	Contacting
Switching function	Threshold value with fixed hysteresis
Switching element function	Changeover switch
Switch-on point max.	0.25
Switch-off point min.	0.07
Max. switching frequency	1
Min. load current	100
Operational voltage range AC	12250
Operational voltage range DC	12250
Utilisation category - inductive load	AC-14DC-13
Utilisation category - resistive load	AC-12DC-12
Electrical connection	3 connector leads
Electrical connection 1, connector system	Open end
Cable length	0.5
Material cable sheath	PVC
Type of mounting	Either:On 1n mounting frameWith through-hole
Mounting position	optional
Pneumatic connection	PK-4
Product weight	40
Material housing	PA-reinforcedPOMSteelVMQ (silicone)
Material switch contact	Silver
Material electrical connection	Tin-plated
Material membrane	Chloroprene rubber
Setting options	Permanently set
Degree of protection	IP67
Insulation voltage	2000
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Pollution degree	3
