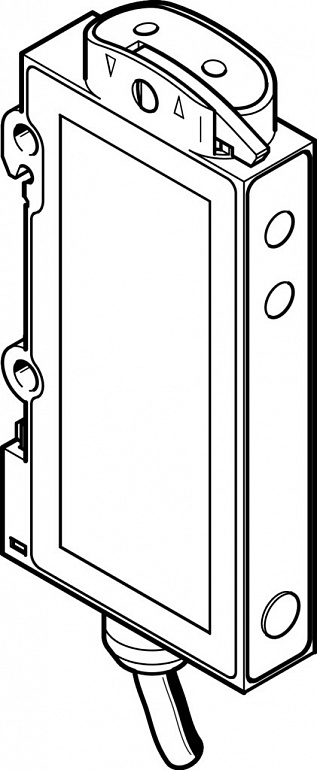

| Technical Data |
|
| Design |
Block design |
| Conforms to standard |
EN 60947-5-2 |
| Symbol |
00991650 |
| Approval |
RCM trademarkc UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Measured variable |
Position |
| Measuring principle |
Optoelectronic |
| Measurement method |
Fibre-optic unit |
| Type of light |
Red |
| Mutual influence |
ProtectedUp to four devices mounted directly next to one another |
| Ambient temperature |
-2060 |
| Switching output |
PNP |
| Switching element function |
Switchable |
| Max. switching frequency |
1500 |
| Max. output current |
100 |
| Voltage drop |
2.4 |
| Timer function |
1 - 2000 ms |
| Short circuit current rating |
Pulsed |
| Operational voltage range DC |
1030 |
| Residual ripple |
10 % |
| No-load supply current |
25 |
| Reverse polarity protection |
For all electrical operating voltage connections |
| Electrical connection |
4-wireCable |
| Cable length |
2 |
| Material cable sheath |
TPE-U(PUR) |
| Type of mounting |
With through-holeWith H-rail |
| Mounting position |
optional |
| Product weight |
58 |
| Material housing |
ABS |
| Display |
LED |
| Switching status indication |
Yellow LED |
| Function reserve indication |
Green LED |
| Setting options |
Teach-inTeach-in via electrical connection |
| Ambient temperature with moving cable |
-560 |
| Degree of protection |
IP64 |
| Insulation voltage |
50 |
| Corrosion resistance class CRC |
4 - Very high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
