| Technical Data |
|
| Design |
Block design |
| Conforms to standard |
EN 60947-5-2 |

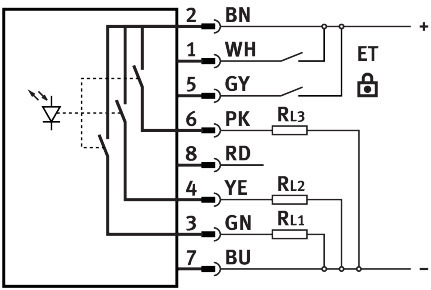

| Symbol |
00991617 |
| Approval |
RCM trademarkc UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
Position |
| Measuring principle |
Optoelectronic |
| Measurement method |

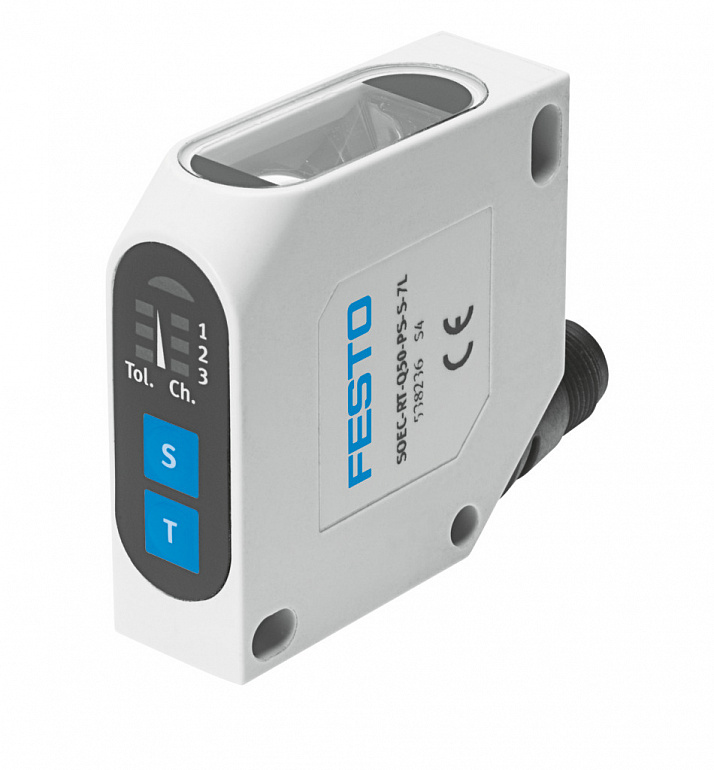

Colour sensor |
| Type of light |
White |
| Max. light spot |
Ø 4 mm at a sensing range of 22 mm |
| Operating distance |
1232 |
| Ambient temperature |
-1055 |
| Switching output |
PNP |
| Switching element function |
Light switching |
| Max. switching frequency |
500 |
| Max. output current |
100 |
| Voltage drop |
2.4 |
| Short circuit current rating |
Pulsed |
| Operational voltage range DC |
1030 |
| Residual ripple |
10 % |
| No-load supply current |
40 |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection |
8-pinM12x1Plugs |
| Size |
50x50x17 mm |
| Type of mounting |
With through-hole |
| Product weight |
38 |
| Material housing |
ABS |
| Ready status indication |
Green LED |
| Switching status indication |
LED |
| Setting options |
Teach-inTeach-in via electrical connection |
| Setting range lower limit |
12 |
| Setting range upper limit |
32 |
| Ambient temperature with moving cable |
-555 |
| Degree of protection |
IP67 |
| Corrosion resistance class CRC |
4 - Very high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
