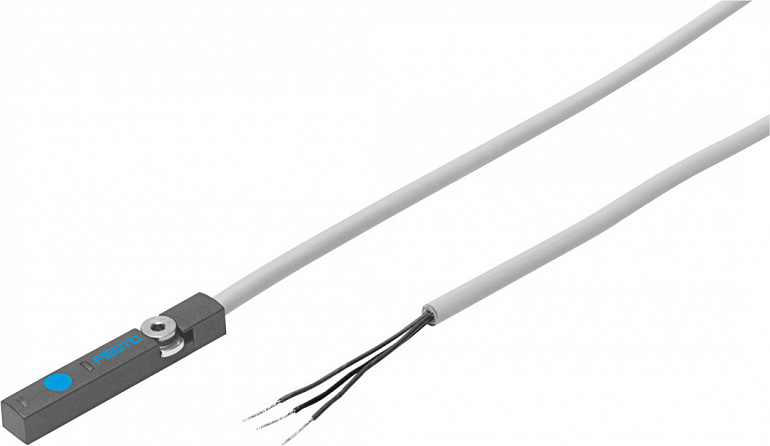

| Technical Data |
|
| Design |
For T-slot |
| Conforms to standard |
EN 60947-5-2 |
| Symbol |
00991702 |
| Approval |
RCM trademarkc UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC (UK-E)To UK RoHS instructions (UK-R) |
| KC mark |
KC-EMV |
| Note on materials |
RoHS-compliant |
| Measured variable |
Position |
| Measuring principle |
Inductive |
| Rated operating distance |
1.5 |
| Reduction factors |
Aluminium = 0.62Stainless steel V2A = 0.95Copper = 0.6Brass = 0.72Steel St 37 = 1.0 |
| Ambient temperature |
-2570 |
| Repetition accuracy with constant conditions |
<= 0.05 mm, approach from the side |
| Switching output |
PNP |
| Switching element function |
N/O contact |
| Switch-on time |
1.0E-4 |
| Max. switching frequency |
4500 |
| Max. output current |
150 |
| Max. switching capacity DC |
4.5 |
| Voltage drop |
2 |
| Inductive protective circuit |
Integrated |
| Min. load current |
0 |
| Off-state current |
0.01 |
| Short circuit current rating |
Pulsed |
| Overload protection |
Available |
| Operational voltage range DC |
1030 |
| Residual ripple |
10 % |
| No-load supply current |
10 |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connector system |
Open end |
| Electrical connection 1, number of connections/cores |
3 |
| Connection outlet orientation |
In-line |
| Test conditions cable |
Bending strength: to Festo standardTest conditions on requestEnergy chain: > 5 million cycles, bending radius 75 mm |
| Cable length |
7.5 |
| Cable characteristic |
Standard/suitable for energy chains |
| Cable sheath colour |
Grey |
| Material cable sheath |
TPE-U(PU) |
| Material insulating sheath |
PP |
| Size |
Slot 8 |
| Type of mounting |
Flush with T-slotScrew-clampedInsertable in the slot from above |
| Tightening torque |
0.6 |
| Mounting position |
optional |
| Mounting type |
Flush |
| Housing colour |
Black |
| Material housing |
PAPURHigh-alloy stainless steel |
| Switching status indication |
Yellow LED |
| Ambient temperature with moving cable |
-570 |
| Degree of protection |
IP65IP67 |
| Insulation voltage |
50 |
| Immunity to surge |
0.8 |
| Corrosion resistance class CRC |
3 - high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni |
| Cleanroom class |
Class 4 according to ISO 14644-1 |
| Pollution degree |
3 |
| Additional information for sensor selection |
For T-slot |
| Electrical output |
PNP |
| Selection of sensor design |
Special design |
