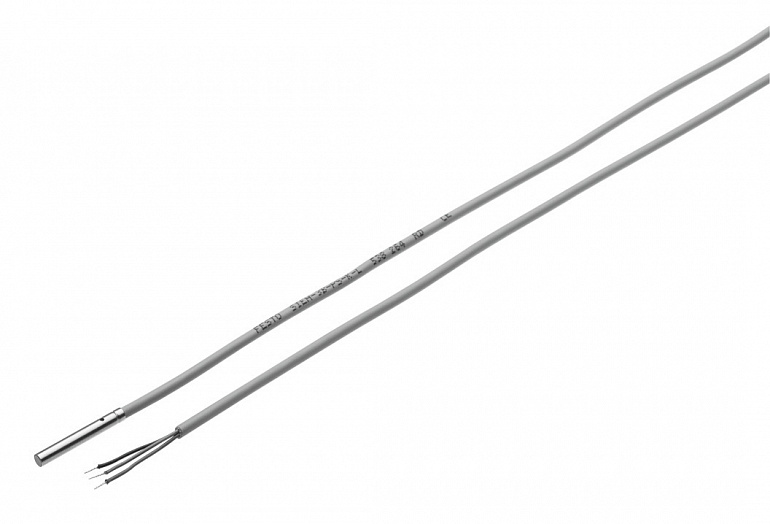

| Technical Data |
|
| Design |
Round |
| Conforms to standard |
EN 60947-5-2 |
| Symbol |
00991704 |
| Approval |
RCM trademarkc UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC (UK-E)To UK RoHS instructions (UK-R) |
| Measuring principle |
Inductive |
| Rated operating distance |
1 |
| Assured operating distance |
0.81 |
| Reduction factors |
Aluminium = 0.5Stainless steel St 18/8 = 0.8Copper = 0.45Brass = 0.6Steel St 37 = 1.0 |
| Ambient temperature |
-2570 |
| Repetition accuracy |
0.02 |
| Switching output |
NPN |
| Switching element function |
N/O contact |
| Hysteresis |
0.12 |
| Switch-on time |
0.02 |
| Max. switching frequency DC |
3000 |
| Max. output current |
100 |
| Voltage drop |
2 |
| Inductive protective circuit |
IntegratedOutput current < 100 mAAnd switching frequency < 10 Hz |
| Off-state current |
0.1 |
| Short circuit current rating |
Pulsed |
| Operational voltage range DC |
1030 |
| Residual ripple |
20% |
| No-load supply current |
10 |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connector system |
Open end |
| Electrical connection 1, number of connections/cores |
3 |
| Cable length |
2.5 |
| Material cable sheath |
TPE-U(PUR) |
| Material insulating sheath |
PVC |
| Size |
3 mm |
| Type of mounting |
Clamped |
| Mounting type |
Flush |
| Product weight |
18 |
| Material housing |
High-alloy stainless steel |
| Switching status indication |
Yellow LED |
| Ambient temperature with moving cable |
-570 |
| Degree of protection |
IP67 |
| Corrosion resistance class CRC |
4 - Very high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Additional information for sensor selection |
with increased sensing distance |
| Electrical output |
NPN |
| Selection of sensor design |
Standard |
