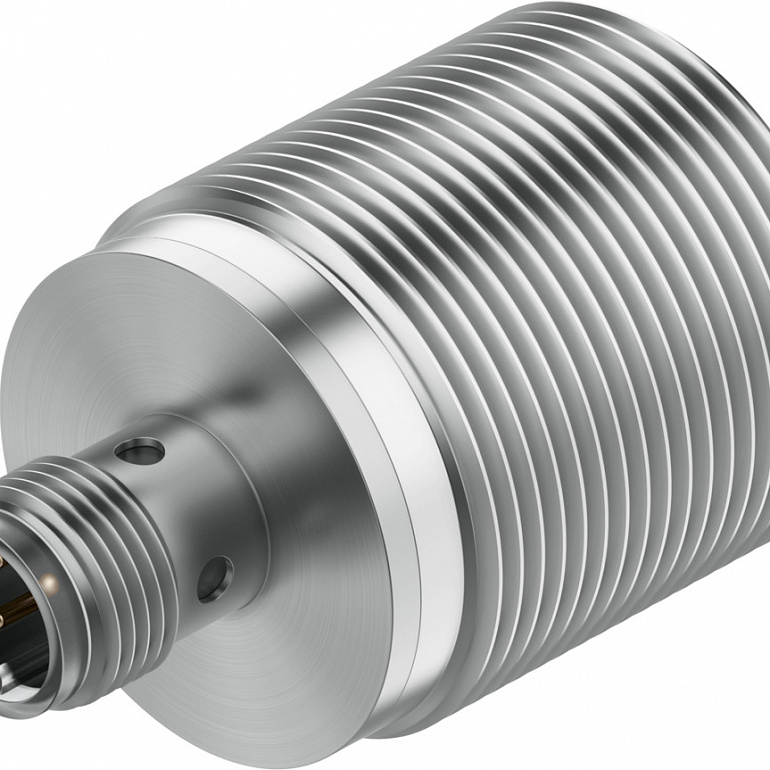

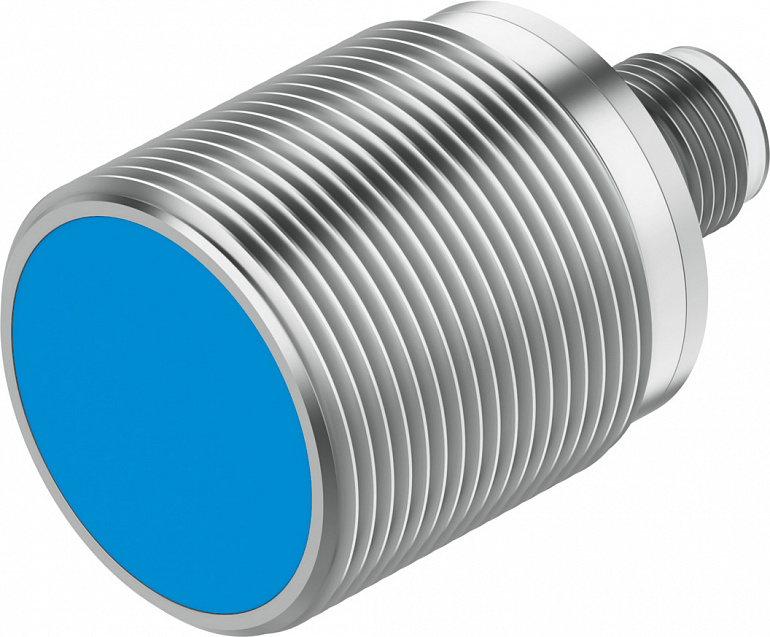

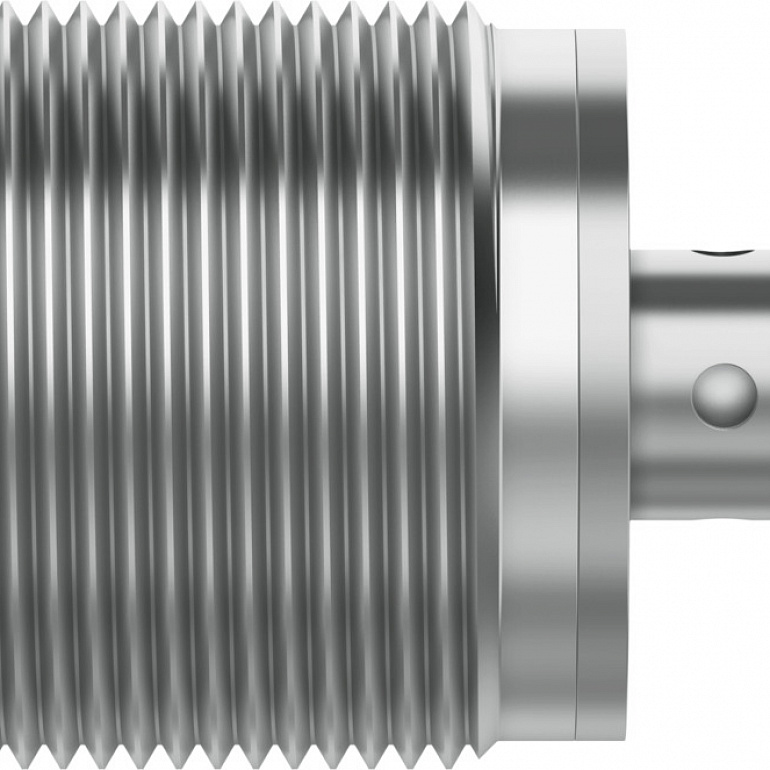

| Technical Data |
|
| Design |
Round |
| Conforms to standard |
EN 60947-5-2 |
| Symbol |
00997507 |
| Approval |
c UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
PositionPath/displacement |
| Measuring principle |
Inductive |
| Measurement method |
Distance sensor |
| Rated operating distance |
010 |
| Note on rated operating distance |
SSC1.SP1: 8.5 mmSSC2.SP1: 5.0 mmFactory setting |
| Displacement measuring range |
010 |
| Ambient temperature |
-2570 |
| Displacement resolution |
0.01 |
| Repetition accuracy |
±0.1 mm |
| Temperature drift |
±10% |
| Switching output |
PNP/NPN, switchablePush-pull |
| Switching element function |
Switchable |
| Note on hysteresis |
Factory setting: 5% FS |
| Hysteresis |
120 |
| Linearity error in ± %FS |
3 |
| Switch-on time |
100 |
| Measurement range speed |
12400 |
| Accuracy speed |
+/- 20% FS |
| Repetition accuracy speed |
+/- 5% FS |
| Acceleration value range |
-32703270 |
| Max. switching frequency |
1300 |
| Max. output current |
100 |
| Voltage drop |
1 |
| Inductive protective circuit |
Integrated |
| Min. load current |
0 |
| Off-state current |
0.03 |
| Short circuit current rating |
Pulsed |
| Overload protection |
Available |
| Protocol |
IO-Link® |
| IO-Link, revision ID |
V1.1 |
| IO-Link, device profile |
Function Object detectionFunction Product URIFunction Teach two valuesIdentification and diagnosticsSmart sensor - SSP 4.1.1 |
| IO-Link, transmission rate |
COM2 |
| IO-Link, SIO-Mode support |
Yes |
| IO-Link, port type |
Class A |
| IO-Link, process data length input |
32 |
| IO-Link, Process data content IN |
Distance measurement 16 bit MDCDistance monitoring 2 bit SSCMaintenance warning 1 bit DSCMotion diagnostic 2 bit DSC |
| IO-Link, Service data IN |
Acceleration averages 32 bitAcceleration range 32 bitAcceleration value 16 bitMaintenance monitor operating time 32 bitMaintenance monitor measurement 96 bitMaintenance monitor temperature 64 bitMaintenance diagnostic 7 bitMaintenance monitor SSC 64 bitSp |
| IO-Link, minimum cycle time |
3.2 |
| IO-Link, Data storage required |
308 |
| Operational voltage range DC |
1030 |
| Note on operational voltage range DC |
18 - 30 V in IO-Link mode |
| Residual ripple |
20% |
| No-load supply current |
17 |
| Reverse polarity protection |
yes |
| Electrical connection 1, connection type |
Plugs |
| Electrical connection 1, connector system |
M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores |
3 |
| Electrical connection 1, type of mounting |
Screw-type lockNot rotatable |
| Size |
M30 |
| Tightening torque |
030 |
| Mounting type |
Flush |
| Product weight |
116 |
| Housing colour |
Bluegrey |
| Material housing |
BrassPBT |
| Material locknut |
Brass |
| Reference material |
30 mm x 30 mm x 1 mmStructural steel, 1.0037, S235JR |
| Switching status indication |
Yellow LED |
| Storage temperature |
-4085 |
| Degree of protection |
IP65IP67 |
| Housing pressure resistance |
1 |
| Immunity to magnetic fields |
< 50 µT |
| Insulation voltage |
30 |
| Immunity to surge |
0.5 |
| Corrosion resistance class CRC |
3 - high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
