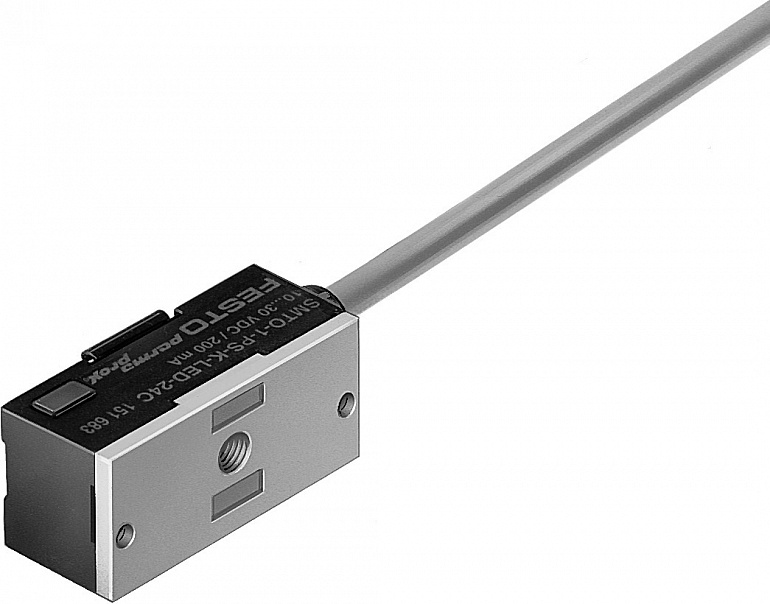

| Technical Data |
|
| Design |
Block design |
| Based on standard |
EN 60947-5-2 |
| Symbol |
00991152 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
Position |
| Measuring principle |
Magneto-inductive |
| Ambient temperature |
-2570 |
| Repetition accuracy |
0.2 |
| Switching output |
PNP |
| Switching element function |
N/O contact |
| Hysteresis |
0.11.5 |
| Switch-on time |
1 |
| Switch-off time |
1 |
| Max. switching frequency |
1000 |
| Max. output current |
200 |
| Max. switching capacity DC |
6 |
| Voltage drop |
3 |
| Inductive protective circuit |
Adapted to MZ, MY, ME coils |
| Off-state current |
0.01 |
| Short circuit current rating |
Pulsed |
| Overload protection |
Available |
| Operational voltage range DC |
1030 |
| Residual ripple |
10 % |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connector system |
Open end |
| Electrical connection 1, number of connections/cores |
3 |
| Connection outlet orientation |
In-line |
| Cable length |
2.5 |
| Cable characteristic |
Standard |
| Cable sheath colour |
Grey |
| Material cable sheath |
PVC |
| Material insulating sheath |
PVC |
| Wire ends |
Wire ferrule |
| Type of mounting |
With accessories |
| Mounting position |
optional |
| Product weight |
85 |
| Housing colour |
Black |
| Material housing |
PETDie-cast zinc |
| Switching status indication |
Yellow LED |
| Ambient temperature with moving cable |
-570 |
| Degree of protection |
IP67 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
