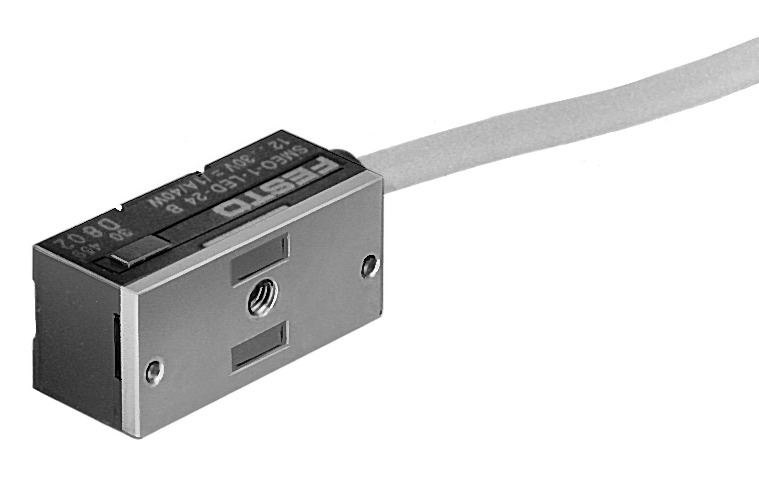

| Technical Data |
|
| Design |
Block design |
| Symbol |
00991145 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
Position |
| Measuring principle |
Magnetic reed |
| Ambient temperature |
-2070 |
| Repetition accuracy |
0.2 |
| Switching output |
Contacting, bipolar |
| Switching element function |
N/O contact |
| Switch-on time |
0.5 |
| Max. switching frequency |
500 |
| Max. output current |
1000 |
| Max. switching capacity AC |
27 |
| Max. switching capacity DC |
27 |
| Short circuit current rating |
no |
| Overload protection |
Not available |
| Operational voltage range AC |
1227 |
| Operational voltage range DC |
1227 |
| Reverse polarity protection |
no |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connector system |
Open end |
| Electrical connection 1, number of connections/cores |
3 |
| Connection outlet orientation |
In-line |
| Cable length |
5 |
| Cable sheath colour |
Grey |
| Material cable sheath |
TPE-U(PUR) |
| Type of mounting |
With accessories |
| Mounting position |
optional |
| Product weight |
130 |
| Housing colour |
Black |
| Material housing |
Epoxy resinReinforced PETSteel |
| Switching status indication |
Yellow LED |
| Ambient temperature with moving cable |
-570 |
| Degree of protection |
IP67 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
