| Technical Data |
|
| Design |

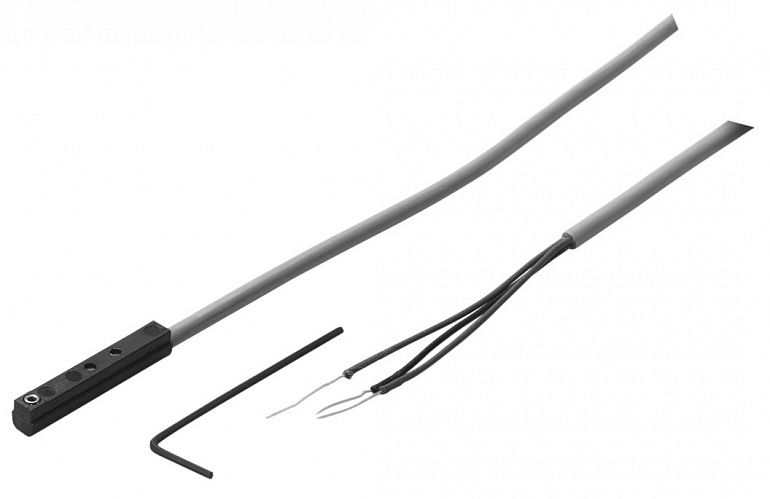

For C-slot |
| Conforms to standard |
EN 60947-5-2 |
| Symbol |
00991620 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Instructions on use |
Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable |
Position |
| Measuring principle |
Magnetic reed |
| Ambient temperature |
-2070 |
| Repetition accuracy |
0.2 |
| Switching output |
Contacting, bipolar |
| Switching element function |
N/O contact |
| Switch-on time |
0.6 |
| Switch-off time |
0.05 |
| Max. switching frequency |
500 |
| Max. output current |
100 |
| Max. switching capacity DC |
1 |
| Voltage drop |
0 |
| Short circuit current rating |
no |
| Overload protection |
Not available |
| Operational voltage range AC |
1227 |
| Operational voltage range DC |
1227 |
| Reverse polarity protection |
no |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connector system |
Open end |
| Electrical connection 1, number of connections/cores |
3 |
| Connection outlet orientation |
In-line |
| Cable length |
2.5 |
| Cable sheath colour |
Grey |
| Material cable sheath |
TPE-U(PUR) |
| Type of mounting |
Clamped in C-slotInsertable in the slot lengthwise |
| Tightening torque |
0.1 |
| Mounting position |
optional |
| Product weight |
20 |
| Housing colour |
Black |
| Material housing |
PPSHigh-alloy stainless steel |
| Switching status indication |
Yellow LED |
| Ambient temperature with moving cable |
-570 |
| Degree of protection |
IP65IP67 |
| Insulation voltage |
50 |
| Immunity to surge |
0.8 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Pollution degree |
3 |
