SKU: 576319
GTIN: 4052568059545
Характеристики
| Electrical connection | 7-pin, Spring-loaded terminal, Straight plug |
| Connection cross section | 0.2, 2.5 |
Все характеристики
| Technical Data | |
| Approval | c UL us listed (OL) |
| Frequency of connection | 100 |
| Mounting position | optional |
| Product weight | 12.8 |
| Electrical connection | 7-pinSpring-loaded terminalStraight plug |
| Operational voltage range DC | 030 |
| Current rating at 40° C | 12 |
| Immunity to surge | 4 |
| Connection cross section | 0.22.5 |
| Ambient temperature | -4085 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Pollution degree | 3 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Material housing | PA |
| Housing colour | Black |
| Material electrical contact | Copper alloyTin-plated |
Приемущества

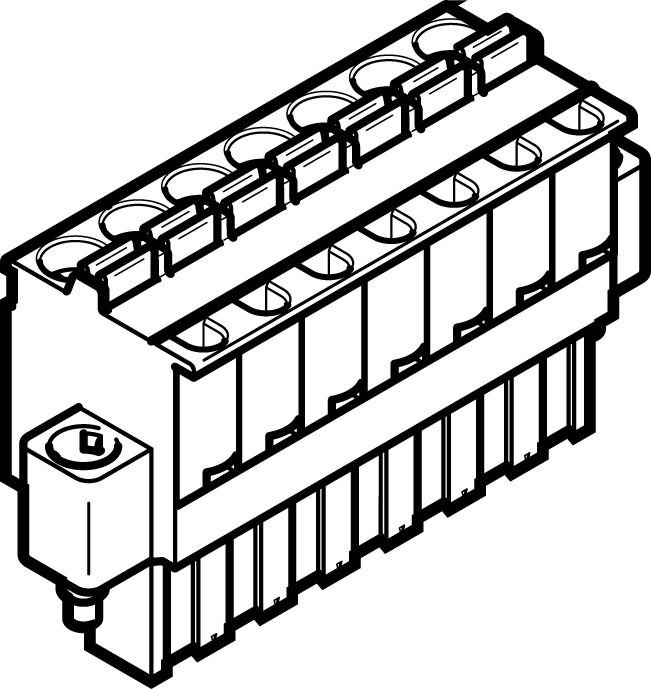

| Power supply socket for fieldbus connection |
| NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications |
| Plug and socket for power supply |
| Can be assembled with any cable lengths |
